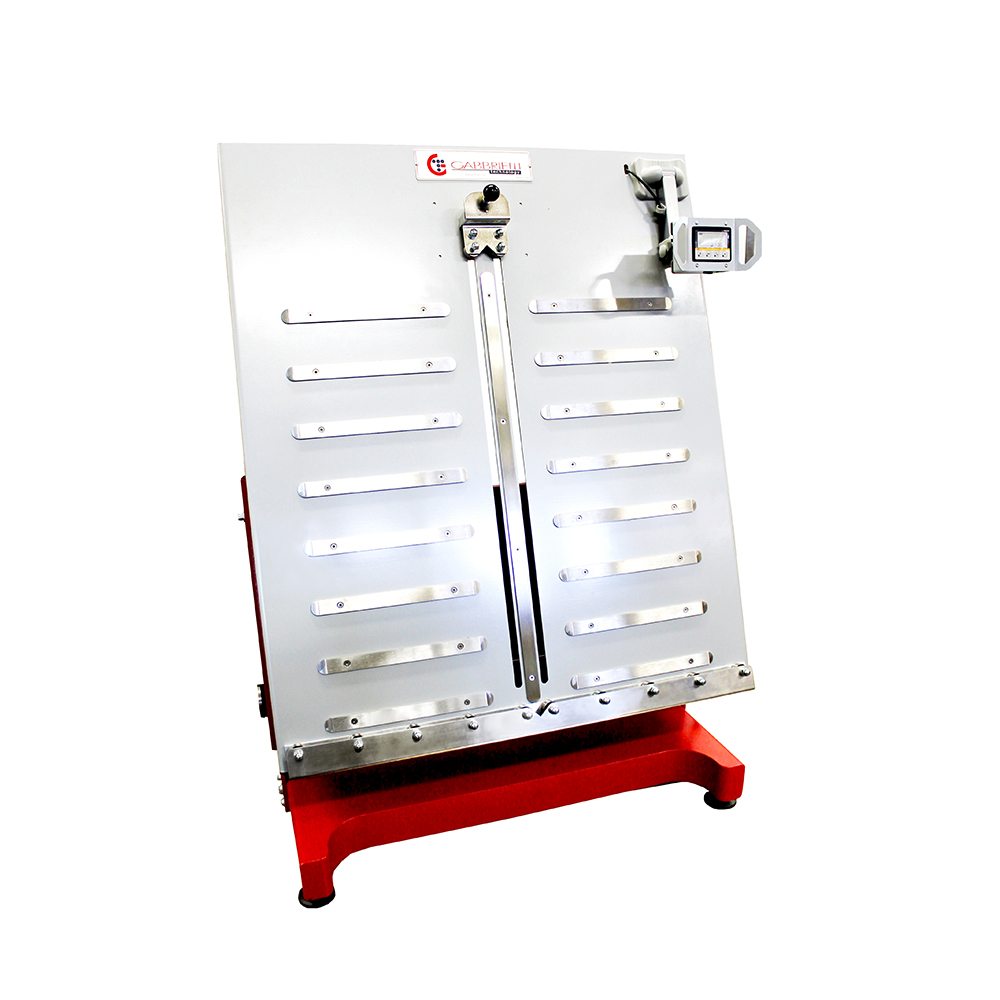

Caliber Dcm

Instruments caliber control of the tiles used mainly in production. It can be measure the sides lenght, parallelism of opposite sides and the diagonal. Measurement takes place on a plane by touch tracer. Inclinable measure plane.

TECHNICAL SPECIFICATIONS
• Accuracy: 0,1 mm
• Quick measure of the tile
• Digital display

EQUIMPENT
• Measurement plane
• Touch probe axis
• Digital display
• Support frame

Code Model Probe measuring device External dimensions Weight
GT1742 CALIBER DCM-650 650 mm 700x1000 mm 115 Kg
GT1743 CALIBER DCM-950 950 mm 1100x1300 mm 189 Kg
GT1744 CALIBER DCM-1250 1250 mm 1100x1600 mm 219 Kg
GT1880 CALIBER DCM-1450 1450 mm 1100x1800 mm 240 Kg
GT1745 CALIBER DCM-1850 1850 mm 1100x2200 mm 300 Kg
