DIN FLOW CUP FCMH

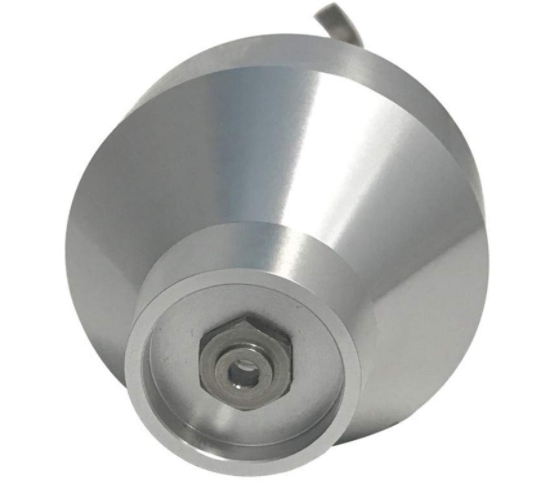

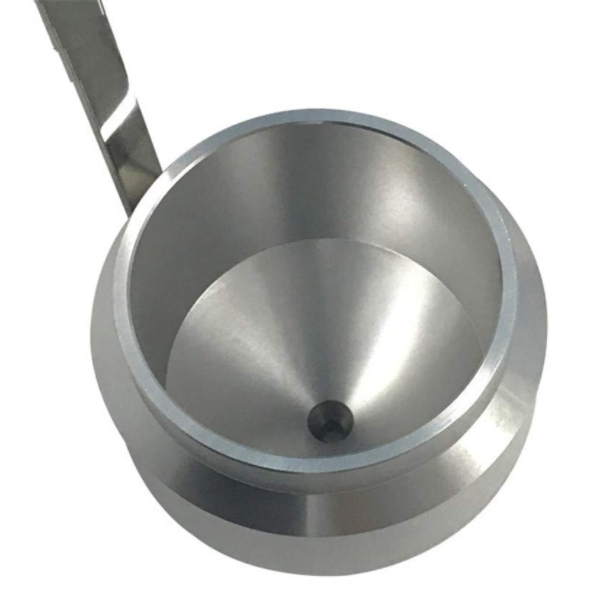

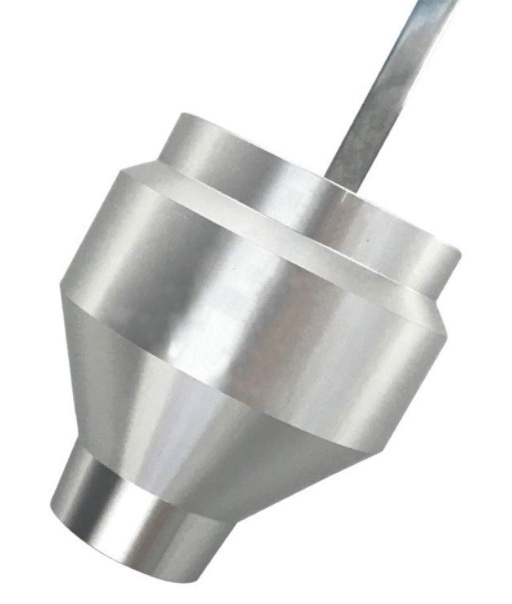

DIN flow cup meter to measure viscosity according to the standard DIN 53211 made by anodized aluminium as immersion cup with stainless steel fixed nozzle.
TECHNICAL SPECIFICATION
• Capacity: 100 ml
• Diameter nozzle: 4 mm ( ± 0.02 mm)
• Flow time: 25 … 150 sec
• Dynamic viscosity: (mPA * s) 96.2 … 680
• Dimension flow cup: Ø int. 50 mm; Ø ext. 65 mm; height 78 mm
• Dimension handle height: 170 mm
• Material cup: anodized aluminium with fixed stainless steel nozzle
| Code | Model | External dimensions | Weight |
|---|---|---|---|
| GT2129 | DIN HANDLE CUP | 50x65x78 mm | 215 g |
| Code | Description | Image |
|---|
Related products

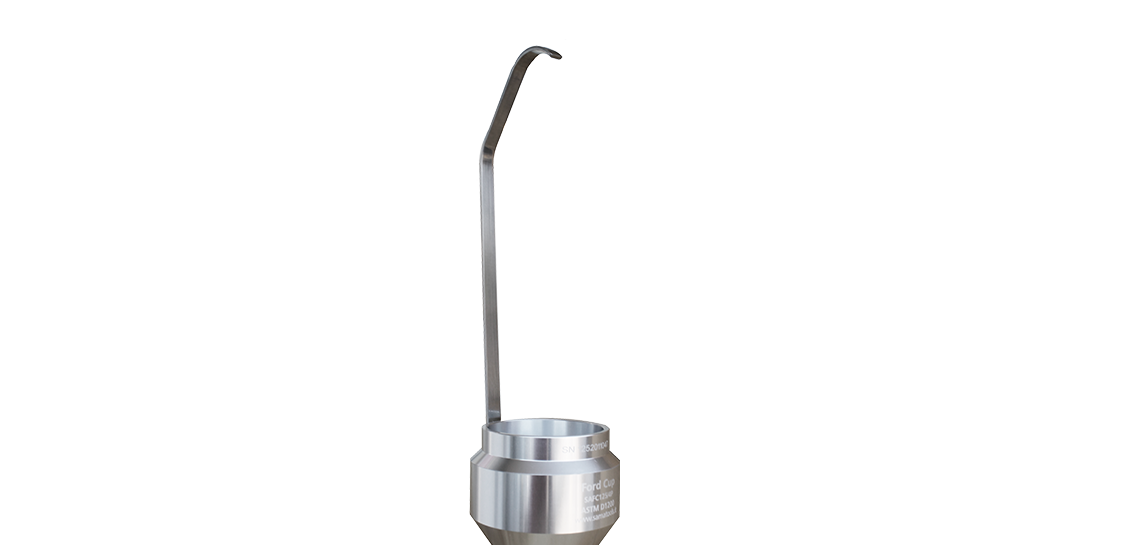

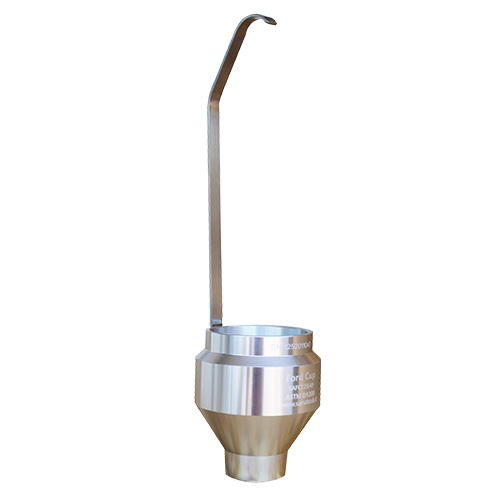

Viscosity Flow Cups
Description:
Gravity viscometer for a quick determination of the ceramic slip viscosity or other liquid as oils, honey, glycerine, milk, etc.
Category:
ViscosityStandard:
Laboratory:
Raw Materials LabGravity viscometer for a quick determination of the ceramic slip viscosity or other liquid as oils, honey, glycerine, milk, etc.
