Glaze Dies

Instrument for the fast manual glaze application.

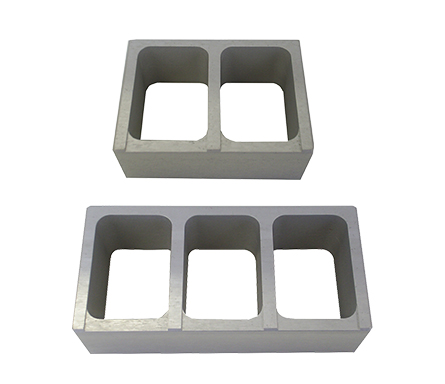

TECHNICAL SPECIFICATIONS GT0856-GT0857
• Made by anodized aluminium with 2 or 3 chambers
• High thickness glaze 0,8 and 1,2 mm (other measure on demand)
• Useful chamber dimension: 45 x 35 mm

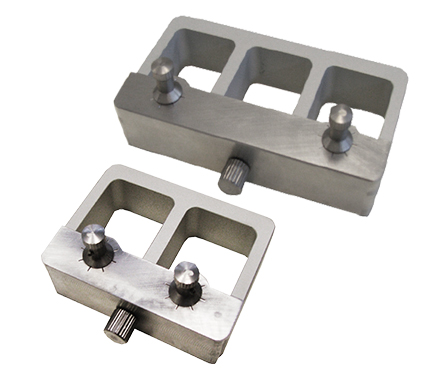

TECHNICAL SPECIFICATIONS GT1464
• Made by anodized aluminum and stainless steel AISI-304 with 2 chamber
• Adjustable high thickness glaze from 0 up to 2,5 mm
• Useful chamber dimension: 45 x 35 mm

TECHNICAL SPECIFICATIONS GT1465
• Made by anodized aluminum and stainless steel AISI-304 with 1, 2 or 3 chambers
• High thickness 0,3 mm

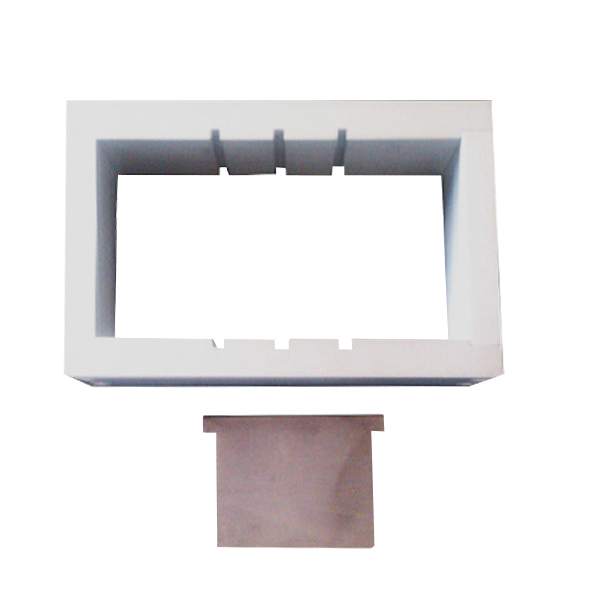

TECHNICAL SPECIFICATIONS GT511
• 3 Chambers with mobile dividers
• Chamber 1: 130×45 mm
• Chamber 2: 70×45 mm (for each chamber)
• Chamber 3: 45×45 mm (for each chamber)

Code Model External dimensions Weight
GT1465 GLAZE DIES AD3 95x130x33 mm 500 gr
GT1464 GLAZE DIES AD2 65x90x33 mm 350 gr
GT0856 GLAZE DIES FD2 65x90x33 mm 240 gr
GT1511 GLAZE DIES FD1-2-3 65x130x33 mm 320 gr
GT0857 GLAZE DIES FD3 65x130x33 mm 320 gr
Code Description Image
