Multifunctional Muffle Kiln

Standards

Laboratories

Tableware lab Ceramic Tiles Lab Raw Materials Lab

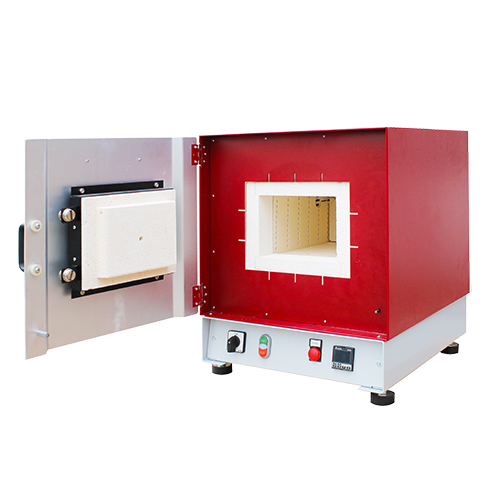

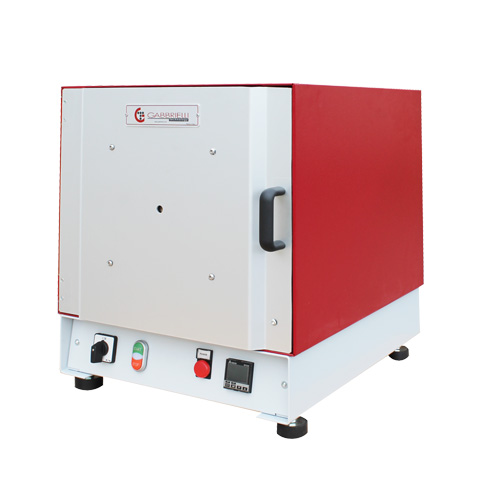

Single muffle kiln for firing test up to 1280 °C that can be converted into a gradient kiln (from 2 up to 9 muffles)

TECHNICAL SPECIFICATIONS
• Muffle kiln made of steel painted with epoxi powder
• Insulation with ceramic fibre performed and light refractory
• Programmable heating control through software
• Switching off the heating on opening the door
• Maximum temperature: 1300 °C
• Chamber dimensions: 210x150x300 mm
• Volume: 9 lt
• Supply: 400 V – 50 hz three phase

Code	Model	External dimensions	Power	Volume	Weight
GT0290	KILN MF-1300	500x600x750 mm	3,8 kW	9 Lt	75 kg

Code	Description	Image
GT0292	Electronic regulator with RS-485 interface with dedicated software up to 9 kiln 'control and curve recording on PC
GT1740	Notebook with operating system and printer	Open image

| Data Sheet

| Add to quote

Related products

Muffle kilns for laboratory made of sheet-steel painted with epoxy powder and insulation with double layer of ceramic fibre. Easy…

| Data Sheet

Muffle Kiln

Description:

Muffle kilns for laboratory made of sheet-steel painted with epoxy powder and insulation with double layer of ceramic fibre. Easy to operate and economical kiln…

COD: GT1361 GT0279 GT0280 GT0281 GT0282 GT0283 GT0284 GT0285 GT0286 GT2072 GT2073

Category:

Firing Muffle Kilns

Standard:

Laboratory:

Bricks Roof Tiles Lab Ceramic Tiles Lab Raw Materials Lab Sanitarywares Lab Tableware lab

Muffle kilns for laboratory made of sheet-steel painted with epoxy powder and insulation with double layer of ceramic fibre. Easy to operate and economical kiln for laboratory tests with a max temperature 1050 °C or 1250 °C
