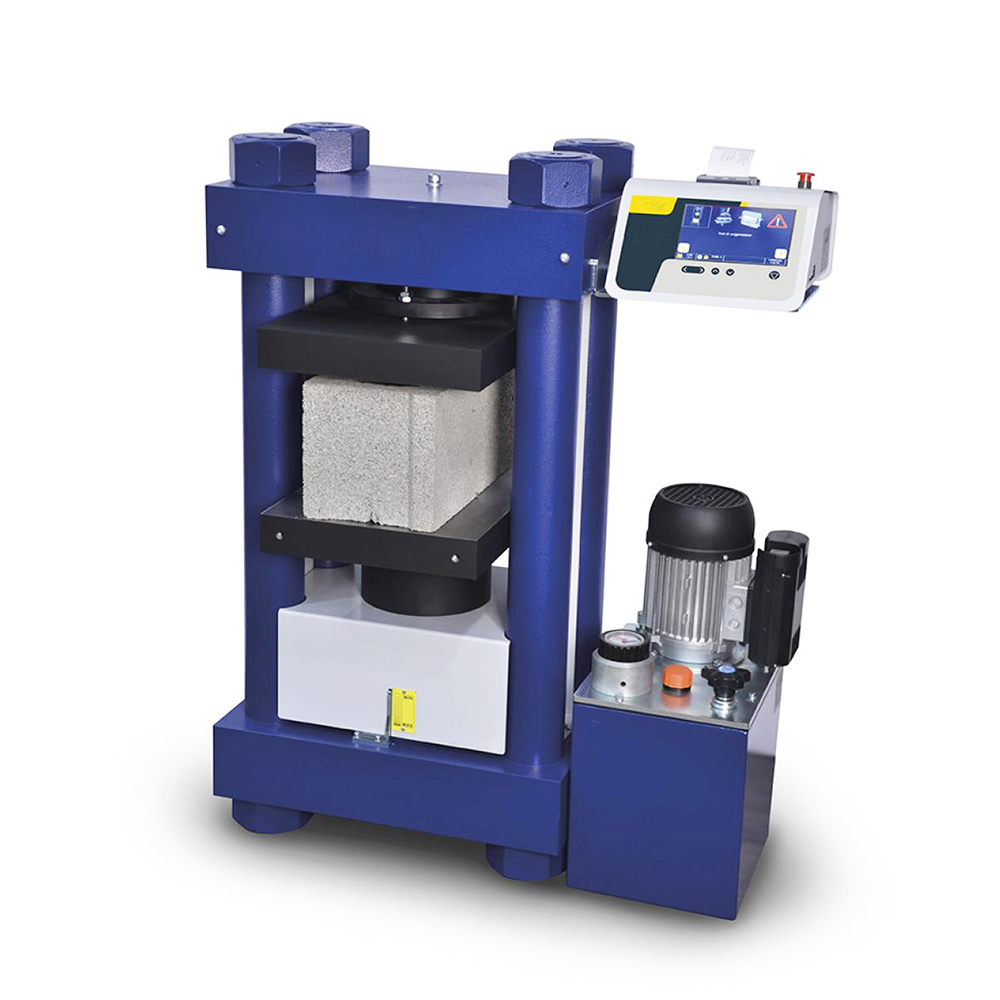

Press 200 Ton Plus
Press for compression tests, capacity 2000 kN / 203 Ton, motorized with touch-screen control unit (semi-automatic model), to test blocks max. 500×300 mm, cubes up to 300 mm per side and cylinders up to Ø 160×320 mm.
STANDARDS:
EN 772-1 | ASTM C39 | ASTM C140 | ASTM C1314 | AASHTO T22 | NF P18-411 | BS 1610 | BS 6073 | BS 812: 110 | BS 812: 111 | API RP 19 | CEN ISO 13503-2
TECHNICAL SPECIFICATIONS:
• Manometers Ø 250 mm with specific resistance scales for cubes 150 mm and cylinders Ø 150 – 160 mm
• Caliber divisions: 2000 kN div. 5 kn
• Maximum. vertical daylight: 336 mm
• Horizontal daylight between columns: 324 mm
• Compression plates 510x320x55 mm
• High rigidity and heavy weight 4-column frame.
| Code | Model | External dimensions | Maximum force applied | Power | Voltage | Weight |
|---|---|---|---|---|---|---|
| GT2651 | PRESSA 200 T PLUS | 870x600x1400 mm | 200 Ton | 750 W | 230 V | 900 Kg |
| Code | Description | Image |
|---|
