Roof Dimension

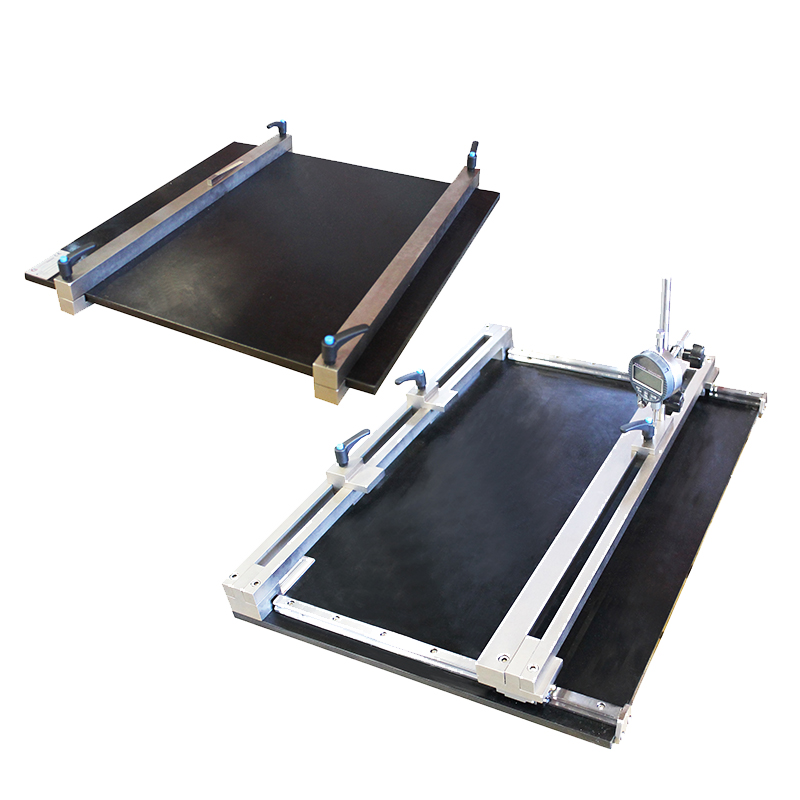

Laboratory instrument for the control of shape regularity (flatness) on brick roof tiles.
TECHNICAL SPECIFICATIONS
A MODEL 1024/A
• Base plate 50×50 cm made by rectified steel, with 4 rubber levelling feet
• N° 2 rectified steel support with clamp fixing system
• I N° 1 stairs thickness gauge in hardness steel with no. 15 steps of 0,5 mm/each
MODEL 1024/B
• Steel base plate with 4 levelling feet
• Adjustable system for roof tile support and gauge
• Digital gauge 0,01 mm
| Code | Model | Measurement scale | Weight |
|---|---|---|---|
| GT1171 | ROOF DIMENSION 1024/A | 57x50x8,5 cm | 26 kg |
| GT1172 | ROOF DIMENSION 1024/B | 68x48x28 cm | 39 kg |
| Code | Description | Image |
|---|---|---|
| GT0356 | Digital gauge, accuracy 0,01 mm | Open image |
