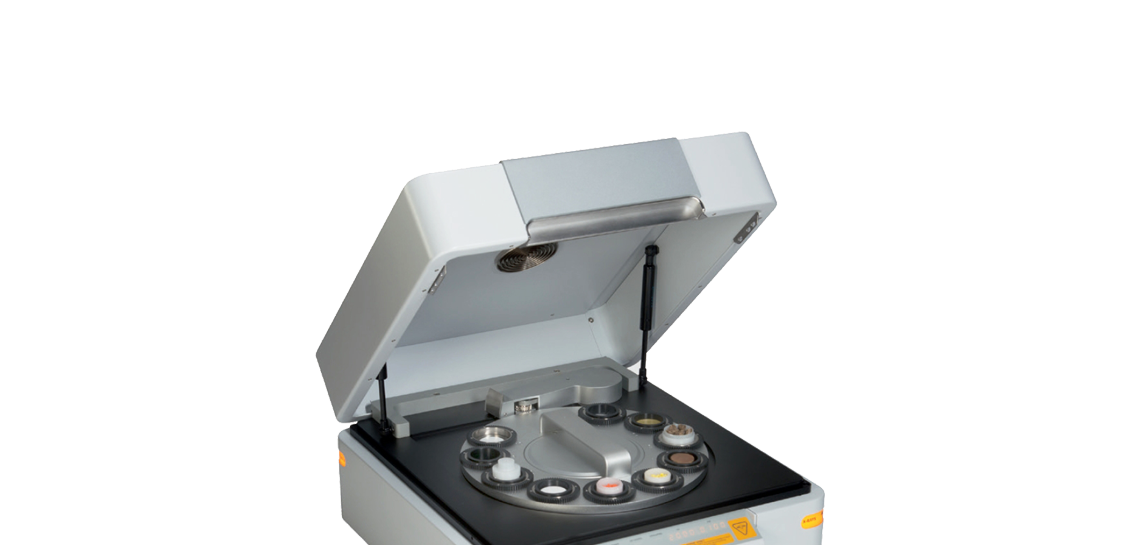

Spectrometer XRF-4
Categories
Chemical-Phisical PropertiesStandards
Top of the range bench spectrometer with excitation capacity 50 kV, 2 mA, maximum power 10 W, Ag anode X-ray tube, high resolution silicon drift detector (SDD) with ultra-thin Be window for the analysis of ultralight elements (eg. F). 10-position sample tray with 10 standard sample holders and a set of inserts, sample spinner, helium (He) purge system, USB interface cable, 64-bit pc with microphone. The wind. Operating system (including monitor)
Services on request: pre-installation, installation, testing, basic training, Omnian SW for analysis without standards.
TECHNICAL SPECIFICATIONS
• reduction in helium consumption
• Calibrated for years
• Online remote assistance
• Accurate results
• Maximum performance
• Guaranteed safety
• Fast and sensitive
EQUIPMENT
• X-ray tube with Ag anode and 50 micrometer Be window
• 6-position filter assembly (empty, Cu 500 μm, Al 50 μm, Al 200 μm, Ti 7 μm, Ag 100 μm, Cu 300 μm)
• SDD10 detector with resolution <145 eV
• linear input counting rate up to 1,500 kcps (50% dead time)
• 10-position specimen tray with 10 standard specimen holders and a set of inserts
• champion spinner
• helium purge system (He).
• USB interface cable
• starting kit of 100 sample cells P1 and 500 pre-cut circles of 3.6um polyester X-ray film (for liquid and loose powder analysis)
• reduction valve for gas cylinder and 8 meters of hose
| Code | Model | External dimensions | Power | Voltage | Weight |
|---|---|---|---|---|---|
| GT2514 | SPECTRO XRF-4 | 270 x 530 x 510 mm | 10 W | 250 VA | 47 Kg |
| Code | Description | Image |
|---|
