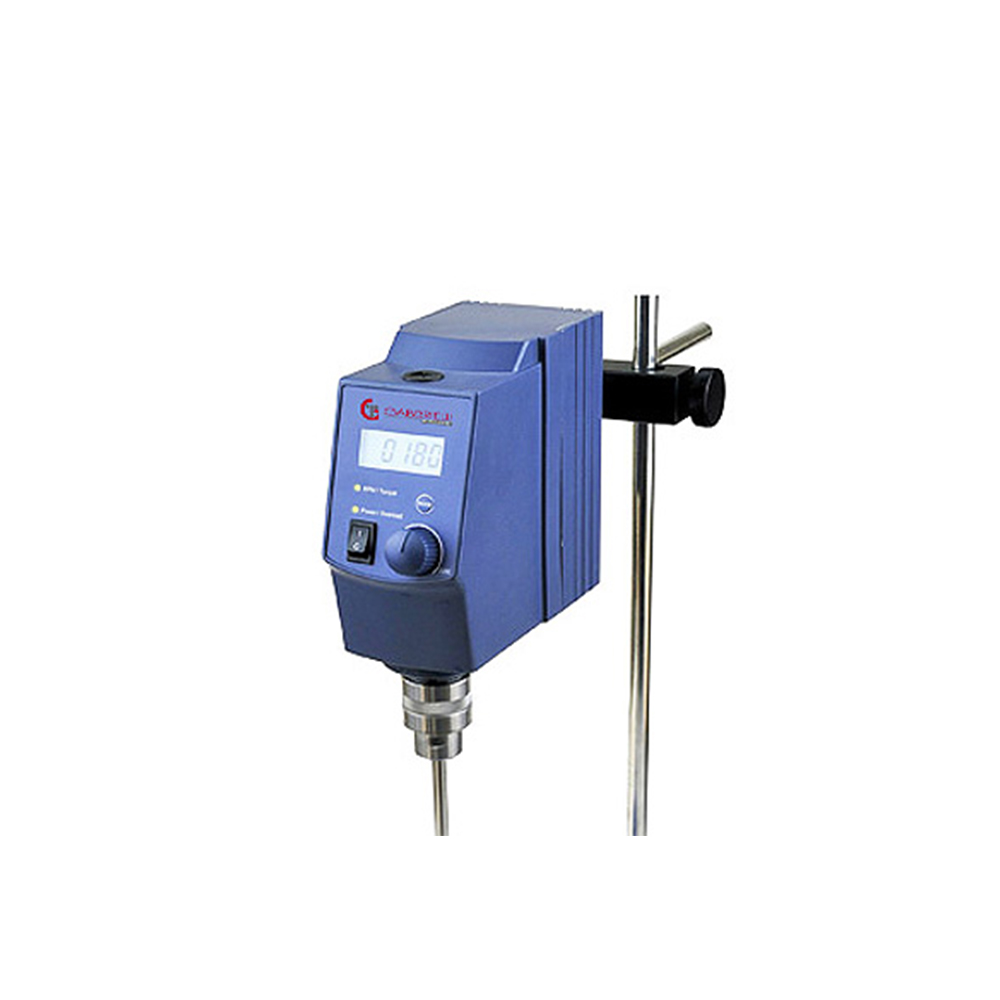

Stirrer Rod Type AM
Laboratory instrument, easy to use, for mixing and grinding of multiple substances. Rod agitator with continuous mechanical speed adjustment, suitable for all work in laboratories. Motor with internal system designed against overheating. By means of a mechanical gear placed above the instrument it is possible to vary the speed continuously (only with the agitator in motion). Built with two drive shafts for two speeds, all housed in a die-cast aluminum alloy housing. Particularly silent and vibration-free, easily applicable by means of a claw-type clamp to a laboratory support Stirring rods with a maximum diameter of 13 mm
The complete set consists of:
– AMD mechanical stirrer with digital speed regulation
– n ° 2. claw pliers
– 4-jaw clamp
– Belfantes chain support support and mixing rods.
TECHNICAL SPECIFICATIONS
• Stirring rods with max. diameter of 8 mm
• Electronic variable speed range: 50÷2200 Rpm
• Accuracy reading: 1 Rpm
• Protection class: IP-42
• Display: LED (AM 20 Digit) – LCD (AM40 – Digit)
EQUIPMENT
• Stirrer and spindle key for fixing stirring rods
| Code | Model | RPM | Couple | Torque Control | External dimensions | Power | Weight |
|---|---|---|---|---|---|---|---|
| GT1553 | STIRRER AM 20 DIGIT | 50÷ 2200 | 40 Ncm | NO | 83x220x186 mm | 70 W | 2,4 Kg |
| GT1555 | STIRRER AM 20 DIGIT (COMPLETE SET) | 50 ÷ 2200 | 40 Ncm | NO | 1000x250x230 mm | 70 W | 15 Kg |
| GT1554 | STIRRER AM 40 DIGIT | 50÷ 2200 | 60 Ncm | SI | 83x220x186 mm | 130 W | 2,4 kg |
| GT1556 | STIRRER AM 40 DIGIT (COMPLETE SET) | 50 ÷ 2200 | 60 Ncm | SI | 1000x250x230 mm | 130 W | 15 kg |
| Code | Description | Image |
|---|---|---|
| GT0634 | Base support U-shaped steel rods with 3 mm Ø 15x1000 | |
| GT0635 | Double supporting clamp claw | |
| GT0636 | Clamp at 4 jawes, rod Ø 12, opening from 0 up to 80 mm | |
| GT0637 | Gripper chain mod. Belfante, opening from 0 to150 mm | |
| GT0638 | Rod Ø 7 with vertical propeller vane Ø 10x50 mm | |
| GT0639 | Rod Ø 7 with horizont.fixed vane Ø 50x15 mm | |
| GT0640 | Rod Ø 7 with horizont. pivoted vane Ø 60x15 mm | |
| GT0641 | Rod Ø 7 with 4 cross-shaped vane Ø 50x15 mm | |
| GT0642 | Rod Ø 7 with 6 holes vane Ø 70x50 mm | |
| GT0643 | Rod Ø 7 with double pivoted vane Ø 90x10 mm | |
| GT0644 | Rod Ø 8 with anchor vane Ø 45x55 mm | |
| GT0645 | Rod Ø 7 with 3 propeller vane Ø 60x10 mm | |
| GT0646 | Rod Ø 7 with 4 propeller vane Ø 50x10 mm | |
| GT0647 | Rod Ø 8 with 8 daisy vane Ø 60 mm | |
| GT0648 | Rod Ø 8 with 6 daisy vane Ø 100 mm | |
| GT0649 | Base plate 250x400 with 1 inox rod Ø 1000 mm |
