Vicatronik

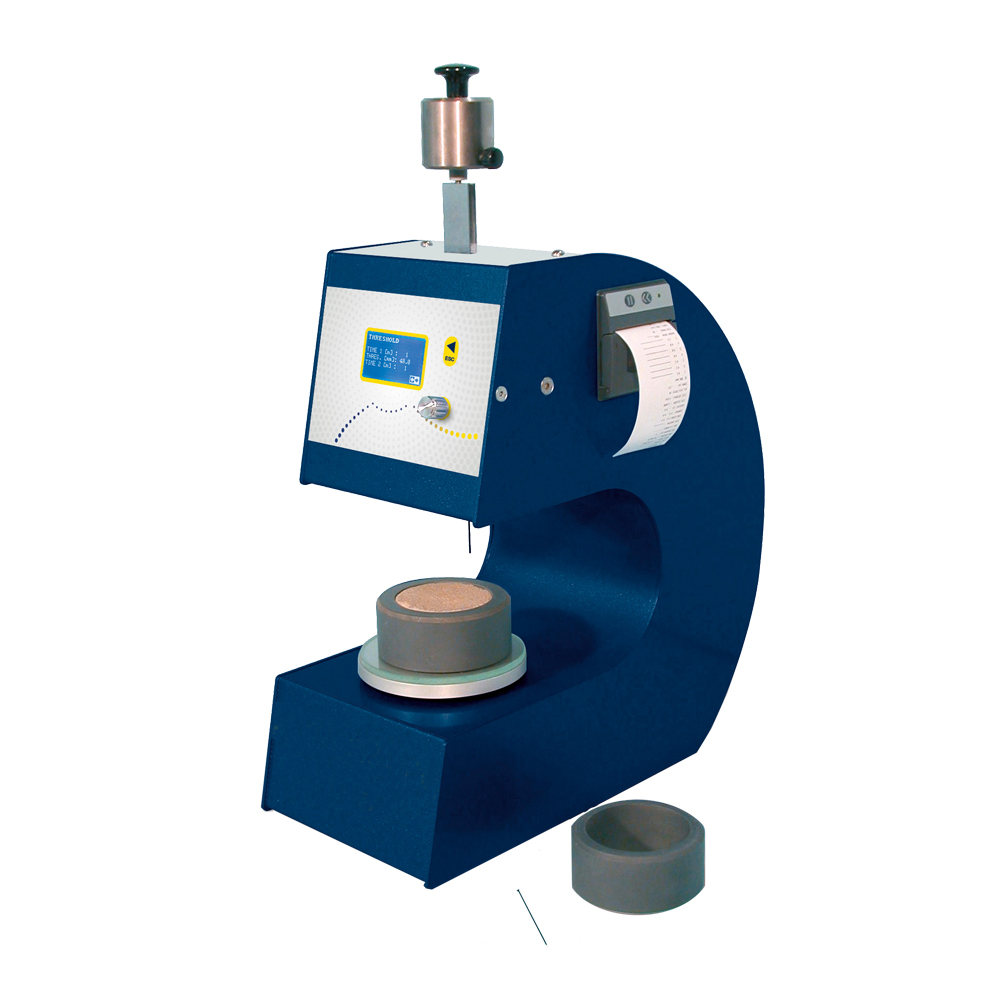

Vicatronik fully automatic instrument for determining the initial and final setting time of cements or mortar pastes built with anti-corrosion components for use in environments with humidity not lower than 90% and 20 ° C. at controlled temperature as required by EN specifications. Test performed automatically with precise and repeatable result. The data is printed on the built-in printer.
STANDARDS:
EN 196-3 , EN 480-2 , EN 13279-2 (GYPSUM), ASTM C187, ASTM C191, DIN 1168, DIN 1196, NF P15-414, NF P15-431, AASHTO T131
TECHNICAL SPECIFICATIONS:
• Large high contrast, high resolution LCD screen.
• Real-time graphic display of the test.
• Fully automatic test performance.
• Customizable programs for research tests.
• Suitable for operation via the built-in control unit or a separate PC.
EQUIPMENT:
• Built-in printer.
• Two hardened needles (Ø 1 mm and Ø 1.13 mm).
• Two EN and ASTM conical molds.
• Glass plate to contain the conical mold.
• Connection to PC (RS232) with the possibility of downloading test data (data processing carried out by the operator).
VICATWARE SOFTWARE GT2643 (OPTIONAL):
• receipt, management, processing and completion of test data.
• automatic creation of the graph.
• personalization and printing of the test report.
| Code | Model | External dimensions | Power | Voltage | Weight |
|---|---|---|---|---|---|
| GT2642 | VICATRONIK | 400x200x470 mm | 50 W | 230 V 1 Ph 50/60 | 13 kg |
| Code | Description | Image |
|---|---|---|
| GT2643 | VicatWare Software | |
| GT2644 | Pack of 10 thermal paper rolls for Vicatronik | |
| GT2645 | Plastic mold Ø 60/70 mm ASTM for Vicatronik | |
| GT2646 | Glass base plate for Vicatronik | |
| GT2647 | Plastic mould Ø 70/80 mm, EN, NF for Vicatronik | |
| GT2648 | Probe 300 g for Vicatronik | |
| GT2649 | Needle Ø 1 mm, ASTM for Vicatronik | |
| GT2650 | Needle Ø 1.13 mm, EN for Vicatronik |
