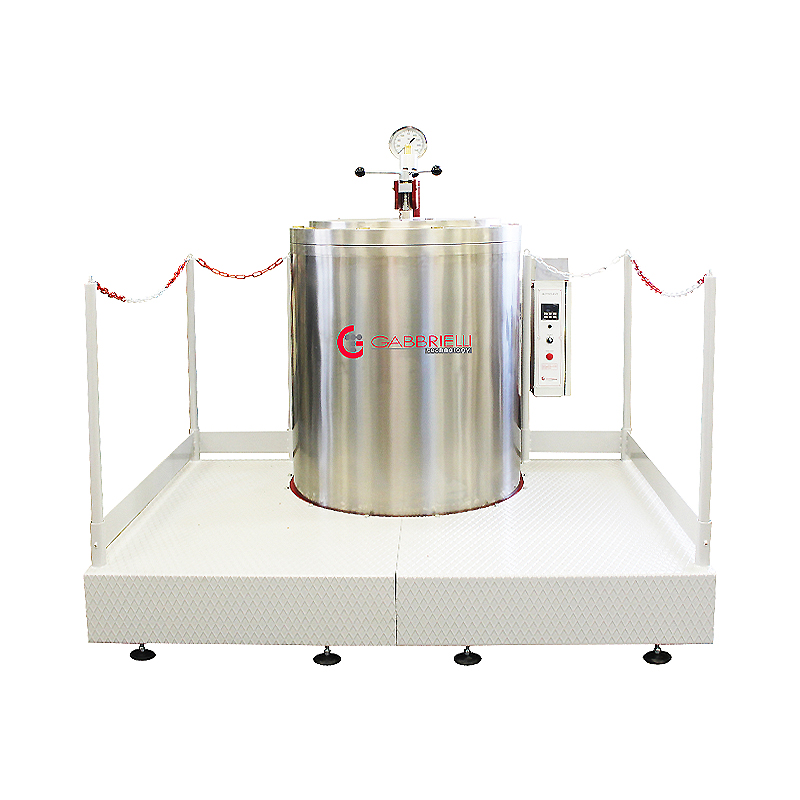

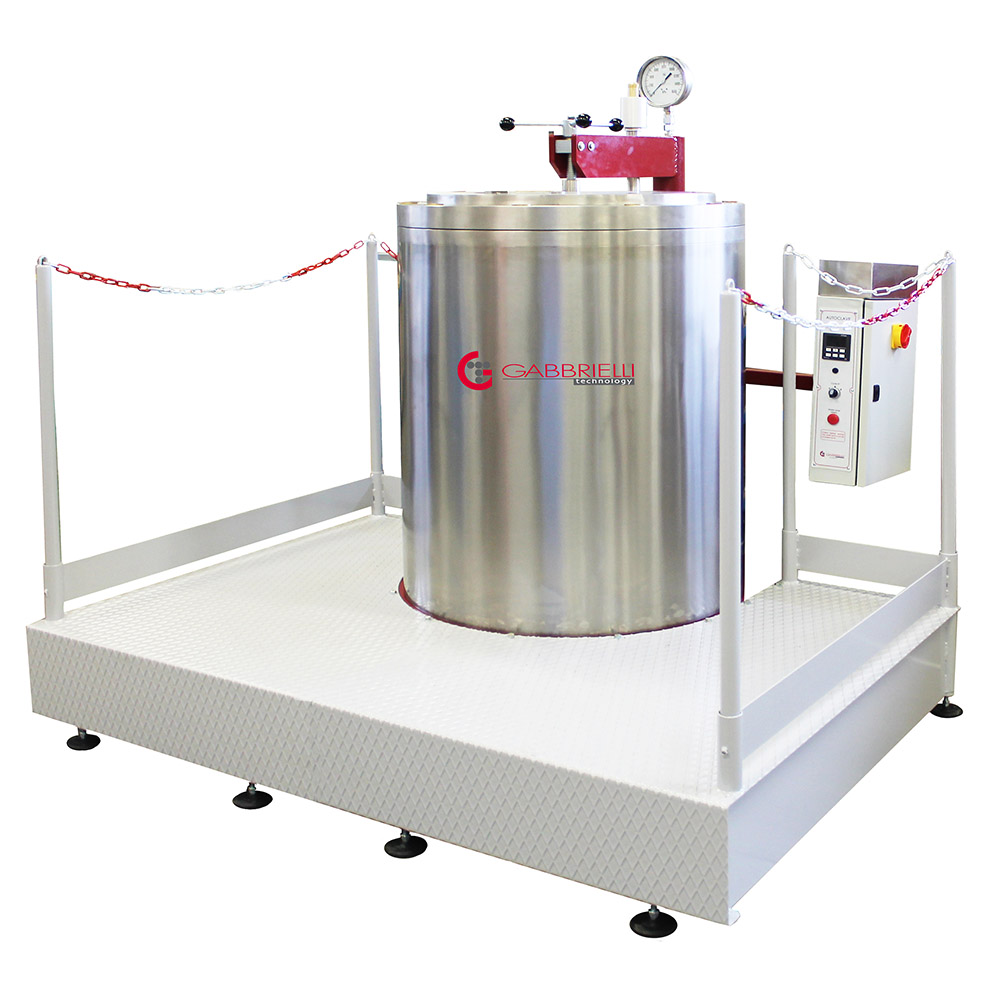

Autoclave GT-680
Categories
AutoclaveLaboratories
Ceramic Tiles LabAutoclave for crazing test of glazed ceramic tiles. The pressurized container is all made by stainless steel AISI-304, suitably insulated, while the supporting frame is made by steel epoxy powder painted. Thanks to the programmable microprocessor, the autoclave can work with standardized cycles (according to UNI EN ISO 10545-11 standard) and cycles customized by the customer.
– THE AUTOCLAVE IS PRODUCED ACCORDING TO 2014/68/UE PED
– ASME STANDARD ON REQUEST
TECHNICAL SPECIFICATIONS
• Test container made all stainless steel AISI – 304
• Standard working cycles UNI EN ISO 10545 – 11 and personalized cycles
• Electrical heating
• Cooling by coil water controlled by a solenoid valve
• Cover closing by means of screws and VITON gasket
• Supply: 400 V – 50 Hz three phases (other voltage on request)
EQUIPMENT
• Sample holder basket in AISI-304
| Code | Model | Internal dimensions | External dimensions | Max pressure | Power | Weight |
|---|---|---|---|---|---|---|
| GT2020 | AUTOCLAVE GT 680-11 | Ø 680x650 mm | 1800x1650x1750 mm | 11 bar | 14 kW | 900 Kg |
| GT1771 | AUTOCLAVE GT 680-750-11 | Ø 680x750 mm | 1800x1650x1850 mm | 11 bar | 14 kW | 1000 Kg |
| GT2022 | AUTOCLAVE GT 680-11 ASME | Ø 680x650 mm | 1800x1650x1750 mm | 11 bar | 14 kW | 900 Kg |
| GT2021 | AUTOCLAVE GT 680-20 | Ø 680x650 mm | 1800x1650x1800 mm | 20 bar | 14 kW | 1100 Kg |
| GT2023 | AUTOCLAVE GT 680-20 ASME | Ø 680x650 mm | 1800x1650x1800 mm | 20 bar | 14 kW | 1100 Kg |
| Code | Description | Image |
|---|---|---|
| GT0142 | Manometer 0 ÷16 bar | Open image |
| GT1060 | Electronic programmable microprocessor | Open image |
| GT1263 | Solenoid valve 11,0 bar | Open image |
| GT1284 | Pressure transducer 20 bar | Open image |
| GT1326 | Manometer 0 ÷25 bar | Open image |
| GT1329 | VITON seal ring cover | Open image |
| GT1649 | Pressure transducer K 11 bar for Autoclave | Open image |
| GT1972 | Safety valve 20,0 bar | Open image |
| GT2024 | Electric resistance 14 Kw with VITON gasket | Open image |
