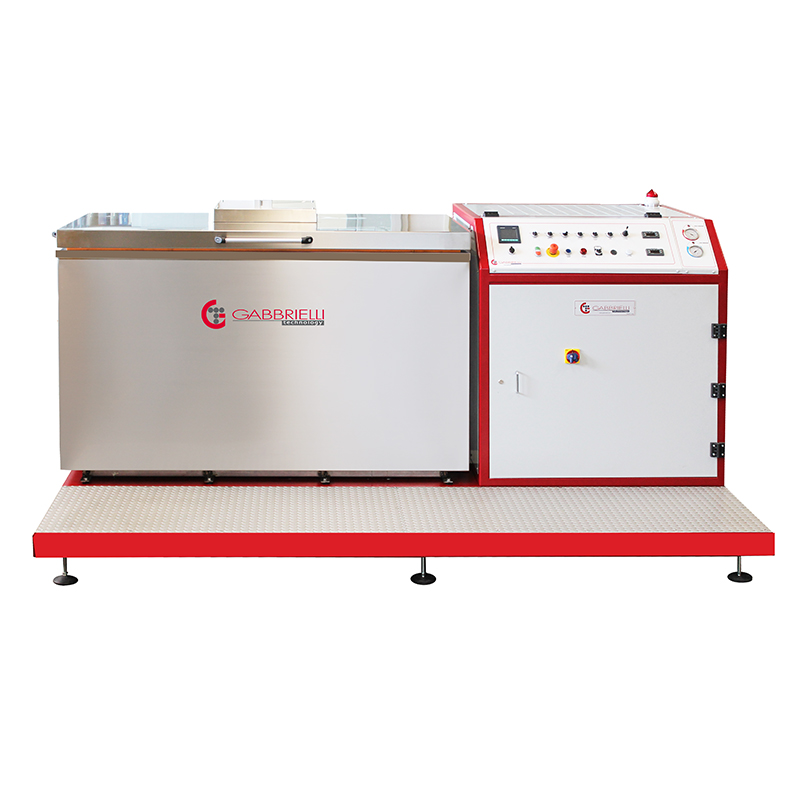

Climatic Cell

Instrument for frost test resistance on ceramic tiles, roof or a similar products. The tiles under go at least some 100 thermal-shocks (-5 ÷ +5 °C and -15 ÷ +15 °C) by repeated immersions or water spraying (the cycles are stored into the microprocessor). The climatic chamber is programmed to do the UNI EN ISO 10545-12 and EN202 Standards, GOST 27180.
Other standard on request

TECHNICAL SPECIFICATIONS
• Stainless steel test chamber with thermically insulated and forced ventilation
• Special basket for small size tile (on demand)
• Touch screen front panel
• Test trend showed on the display with storing temperature-time
• Download of the test cycle files on USB key
• Check the temperature with a probe inserted inside the sample
• Online thermal cycle showed in the monitor
• Preset standard cycle: EN 202, ISO 10545-12
• Free programmable working cycles
• Supply Power: 400V – 50Hz+3 Phases +Neutral
• Stainless steel tank for water circulation during the test with heating and PT100 probe

Code Model Tile format External dimensions Power Weight
GT2119 FROST TEST 650x1250 650x1250 mm 2600x1550x1450 mm 10 kW 1000 Kg
GT1890 FROST TEST 650 650x650 mm 1850x1550x1450 mm 6,5 Kw 600 Kg
Code Description Image
GT0126 Probe Pt 100
