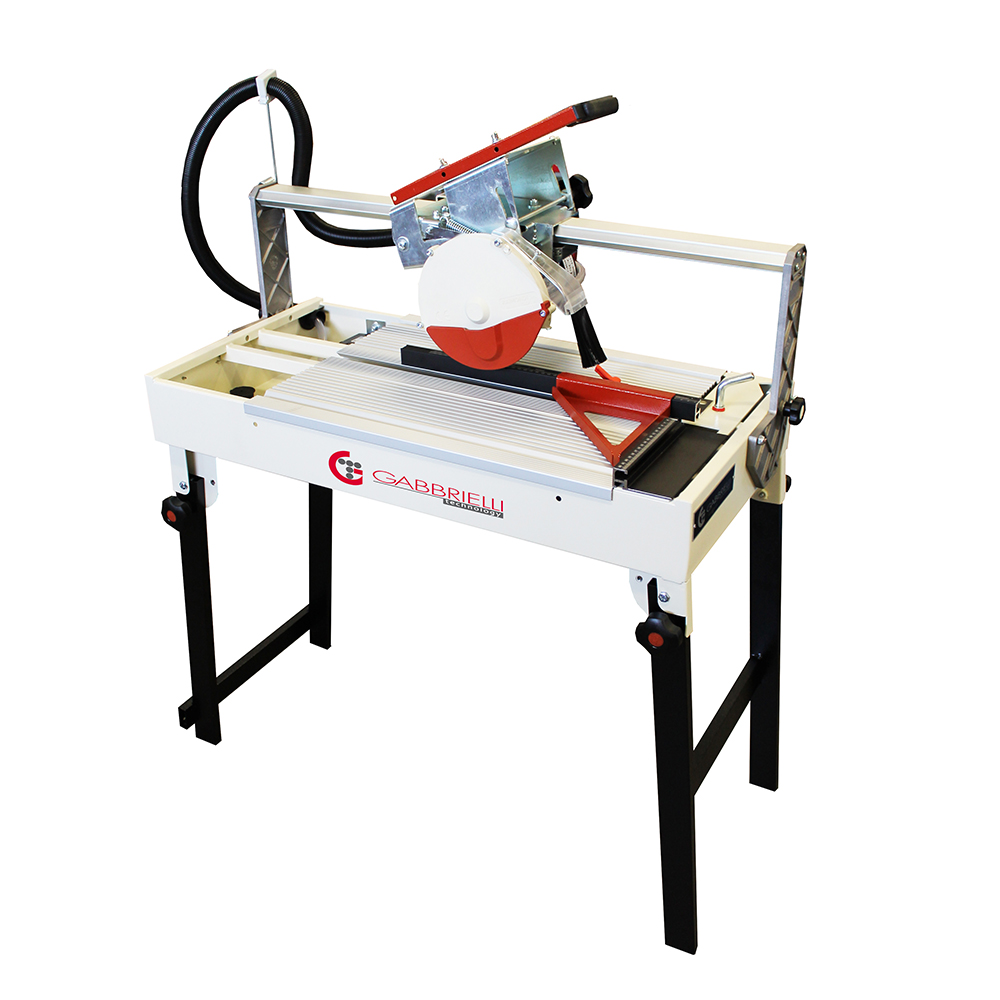

Diamond Tile Cutter Specimen Dtcs
Tool equipped with diamond disc to make cuts on tiles.
TECHNICAL SPECIFICATIONS
• Water cooling with pump
• Adjustable cutting depth
• Supply: 240 V-50 hz single fase
EQUIPMENT
• Square for 45/90 °cutting
• Support legs
• Blade restorer stone
• Keys-kit
| Code | Model | RPM | External dimensions | Power | Useful cut | Thickness max | Disc diameter | Weight |
|---|---|---|---|---|---|---|---|---|
| GT1873 | DTCS-131 | 2,800 | 1600x700x700 mm | 2,2 kw | 1310 mm | 50 mm | Ø 250 mm | 85 kg |
| GT0331 | DTCS-70 | 2,800 | 800x500x500 mm | 0,65 kw | 700 mm | 35 mm | Ø 180 mm | 29 Kg |
| Code | Description | Image |
|---|---|---|
| GT0325 | Continual crown diamond disc Ø 180 mm | |
| GT1874 | Side bench for tile support' | |
| GT1875 | Diamond disc Ø 250 mm |
