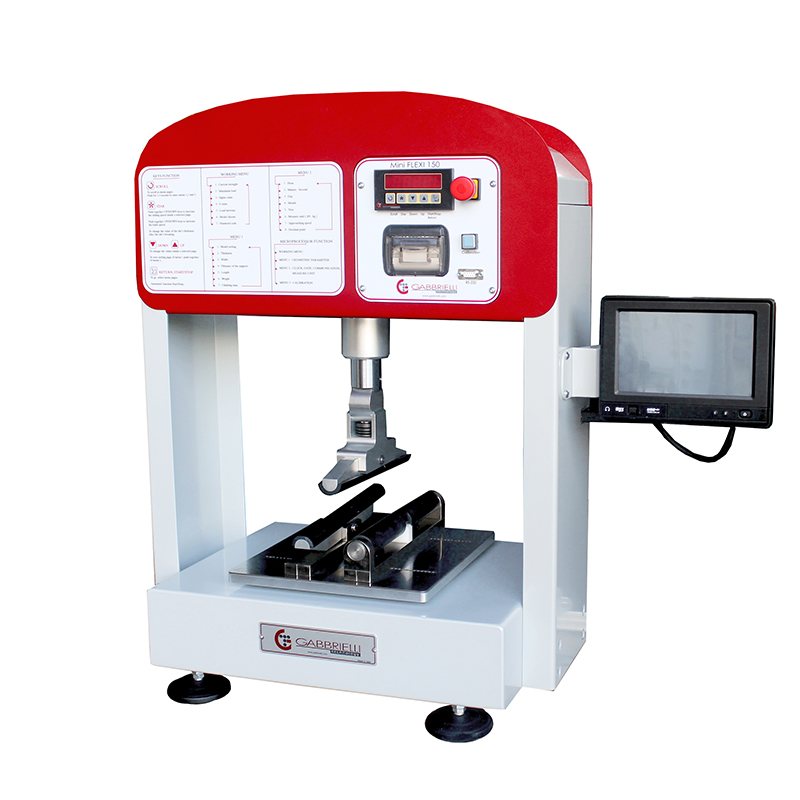

Flexi 150 Mini

Electronic instrument for the measurement of the breaking flexural strength on unfired ceramic specimen.The Flexi 150 Mini is composed by a working bench anchored on the electronic load cell and it holds, according the type of specimen under examination, the lower supporting knives. The upper part, supporting the upper knife, is motor driven and applies the load towards down during the working stroke. The increase of load is electronically programmable. The stroke ends wihen the specimen is broken.
– The instruments allows depending on the accessories installed, per form tests according to UNI EN ISO 10545-4 standard
– Other standards on request
– The weight of the specimen is acquired autonomously and used in the calculation of sigma

TECHNICAL SPECIFICATIONS
• Adjustable loading ramp
• Electronic display 5 digit
• Storage of the peak value
• Max. load: 150kg
• Supply: 230 V, 50/60 Hz, one phase
• Internal printer

EQUIPMENT
• Support and knives for Test from 100×100 up to 250×250 mm

Code Model Tile format External dimensions Maximum force applied Power Weight
GT2094 FLEXI 150 MINI 100x100÷250x250 mm 580x400x750 cm 150 Kg 100 Watt 50 Kg
Code Description Image
GT0259 Software XY strength tester with connection cable RS-232 USB for PC
GT1527 Actuator Open image
GT0276 Kit for test according to DIN 51030 standard Open image
GT1168 Packing of 20 thermal paper rolls for data processor (CM 400) Open image
GT1546 Touch screen with support Open image
GT1701 Kit FIRE 50 for sizes from 18 to 48 mm Open image
GT1702 Kit FIRE 100 for sizes from 48 to 95 mm Open image
GT2701 Plexiglass case kit + micro safety
