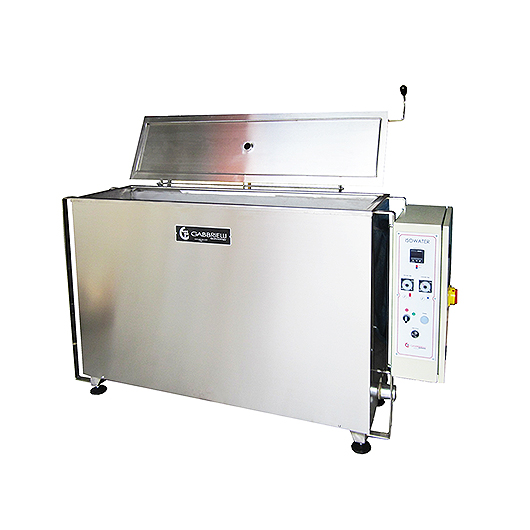

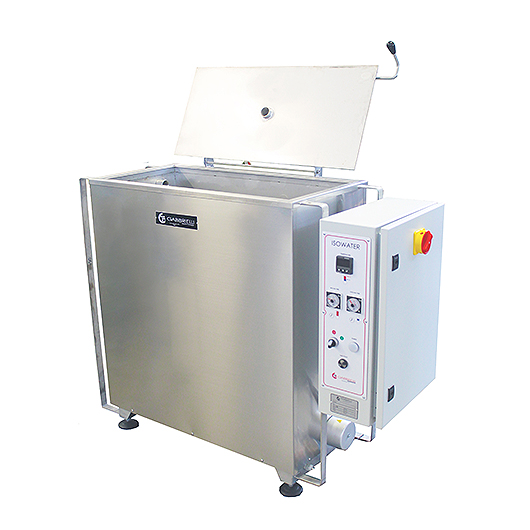

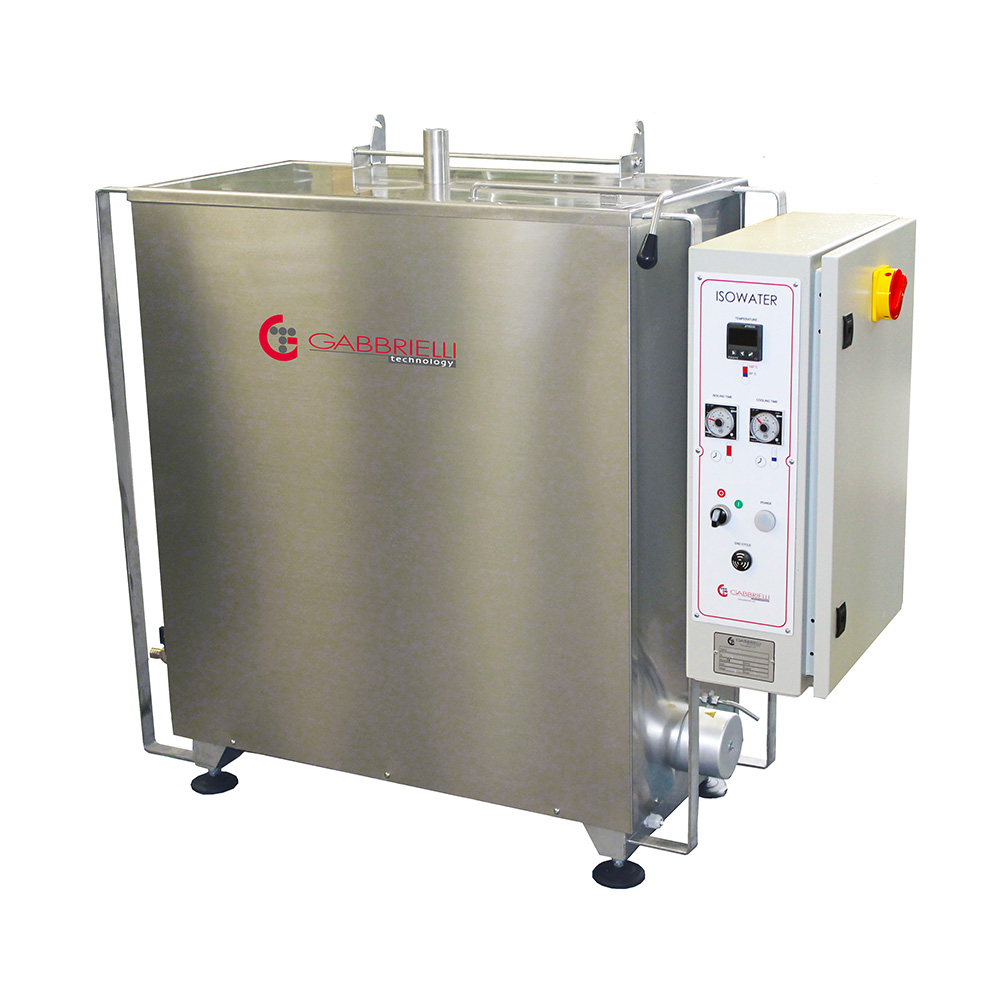

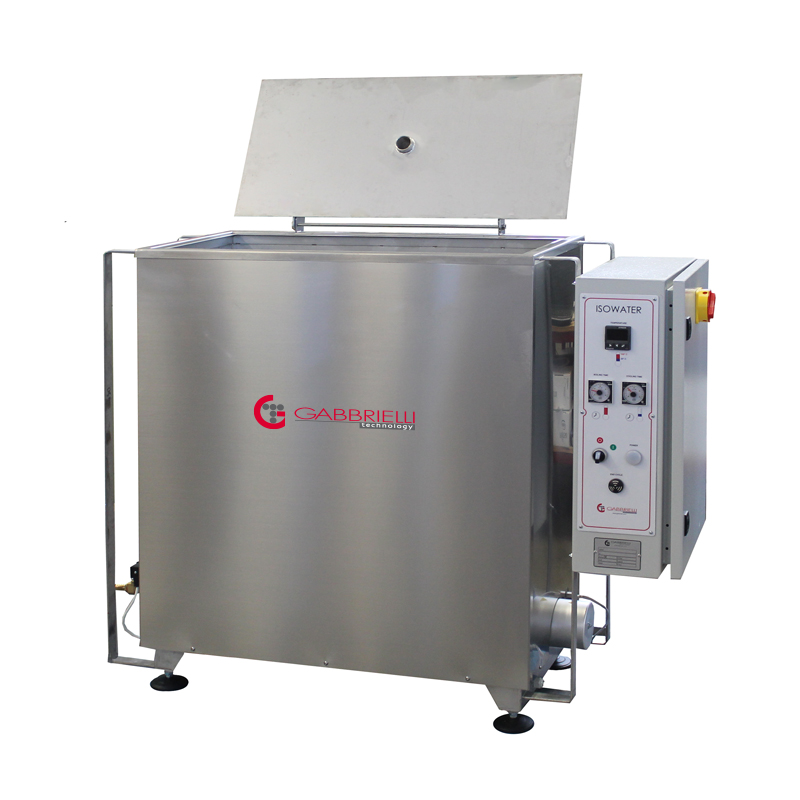

Isowater
Laboratory instrument to determine the amount of water absorption on tiles which have undergone boiling and cooling. The result is a % difference between the dry weight and the weight after the test.
TECHNICAL SPECIFICATIONS
• All made stainless steel AISI-304
• Heating water by means electric heater
• Cooling water by stainless steel AISI-304 circulation coil
• Control board with digital programmable thermo regulator
• Timer for boiling and cooling cycle and delay start of the working cycle
• Supply: 400 V- 50/60 Hz three-phase
EQUIPMENT
• Holder tiles basket all made stainless steel AISI-304
• Chamois leather
| Code | Model | External dimensions | Power | Weight |
|---|---|---|---|---|
| GT1485 | ISOWATER 650x1250 | 1850x500x1100 mm | 12 kW | 150 Kg |
| GT1686 | ISOWATER 950 | 1550x500x1350 mm | 12 kW | 150 Kg |
| GT1355 | ISOWATER 800 | 1360x500x1180 mm | 9 kW | 130 Kg |
| GT1478 | ISOWATER 650 | 1160x500x900 mm | 6 kW | 115 Kg |
| Code | Description | Image |
|---|---|---|
| GT1494 | Electric heating for ISOWATER 650 | Open image |
| GT1512 | Electric heating for ISOWATER 650 x 1250 | Open image |
| GT1396 | Electric heating for ISOWATER 800 | Open image |
| GT0148 | Solid static relaise (SSR) | Open image |
| GT1441 | Termoregulator | Open image |
| GT1442 | Solenoid valve | Open image |
| GT1443 | Digital electronic timer | Open image |
