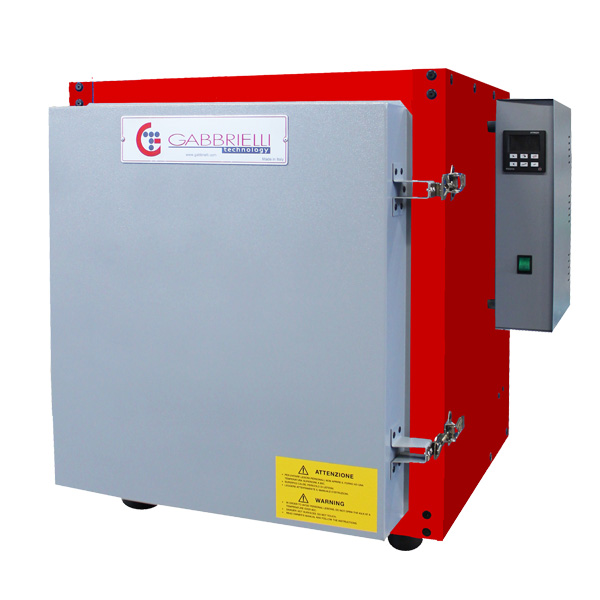

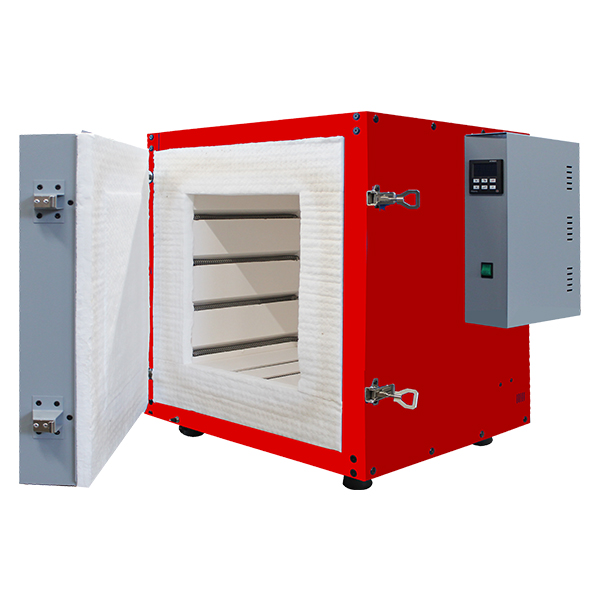

Muffle kilns for laboratory made of sheet-steel painted with epoxy powder and insulation with double layer of ceramic fibre. Easy to operate and economical kiln for laboratory tests with a max temperature 1050 °C or 1250 °C or 1350 °C. The heating elements installed on the bottom and on the walls, guarantees a firing uniformity and, if necessary, an easy replacement of them.

TECHNICAL SPECIFICATIONS
• Frontal door with wide opening and safety micro-switch
• Easy to operate control board with thermo regulator with 2 firing programs and 8 steps
• Supply: 400V – 50Hz three-phases
• The electrical power of the kiln with GT1361 – GT0279 must be 230 V – single phase

Code	Model	External dimensions	Measure rooms	Power	Temperature	Volume	Weight
GT1361	M-KILN 40-1050	500x700x600 mm	300x350x380 mm	(2,4)* Kw	1050 °C	40 lt	70 kg
GT2072	M-KILN 60-1350	850x880x850 mm	400x400x400 mm	12 Kw	1350 °C	60 lt	400 Kg
GT0279	M-KILN 70-1050	850x880x850 mm	400x450x400 mm	(2,8)* kw	1050 °C	70 lt	85 kg
GT0283	M-KILN 70-1280	850x880x850 mm	400x450x400 mm	4,5 kW	1280 °C	70 lt	88 kg
GT0280	M-KILN 100-1050	850x1040x 850 mm	400x600x400 mm	4,5 Kw	1050 °C	100 lt	110 kg
GT0284	M-KILN 100-1280	850x1040x850 mm	400x600x400 mm	6 Kw	1280 °C	100 lt	115 kg
GT2073	M-KILN 120-1350	950x1040x950 mm	500x500x500 mm	18 K w	1350 °C	120 lt	500 Kg
GT0281	M-KILN 150-1050	950x1040x 950 mm	500x600x500 mm	5,8 Kw	1050 °C	150 lt	150 kg
GT0285	M-KILN 150-1280	950x1040x950 mm	500x600x 500 mm	7,5 Kw	1280 °C	150 lt	155 kg
GT0282	M-KILN 250-1050	1050x1400x1180 mm	540x800x600 mm	9 Kw	1050 °C	250 lt	245 kg
GT0286	M-KILN 250-1280	1050x1400x1180 mm	540x800x600 mm	13 Kw	1280 °C	250 lt	250 kg
