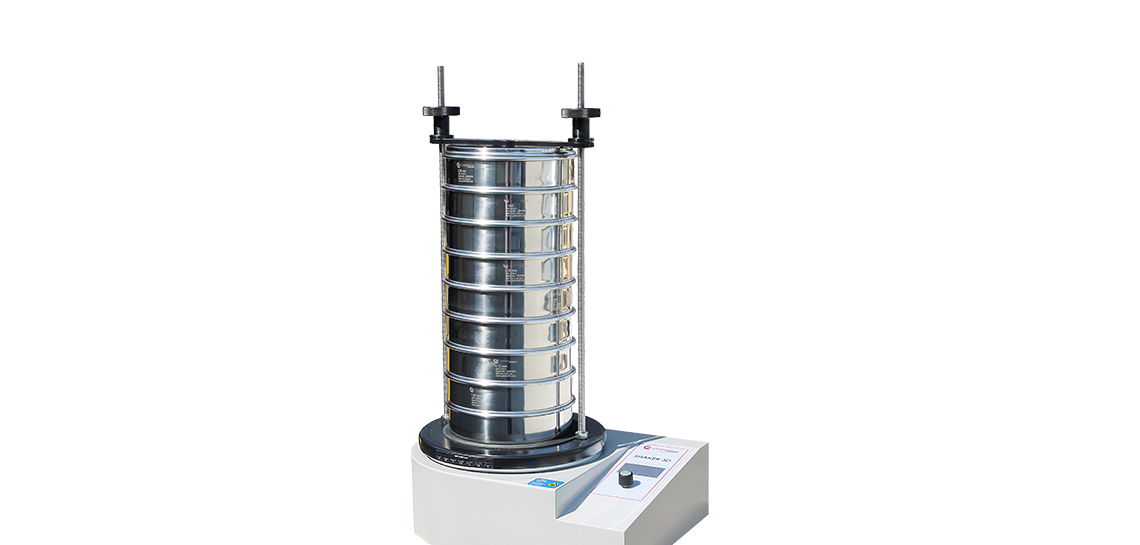

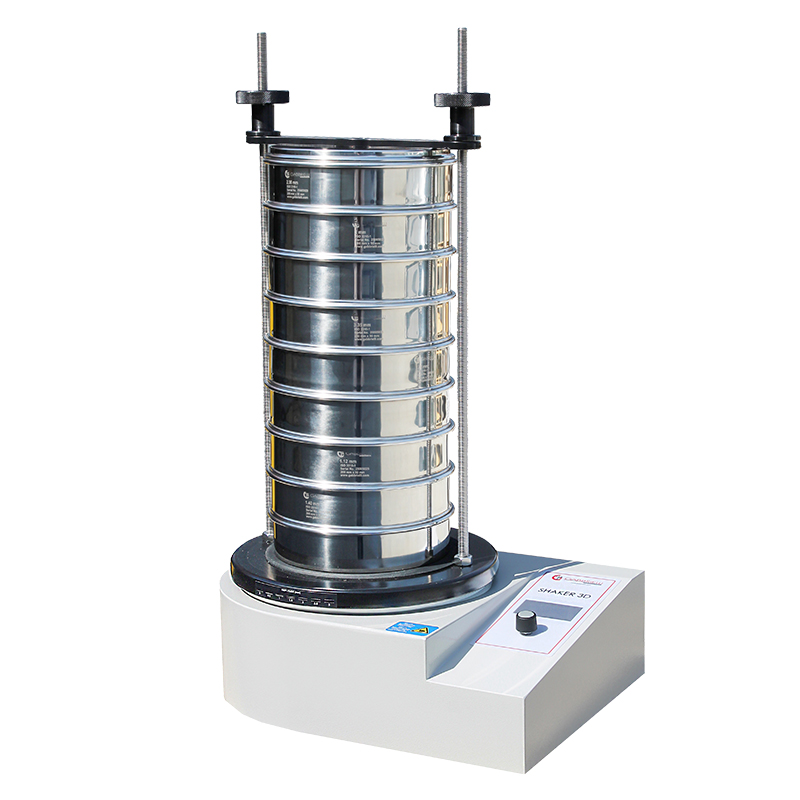

Electromagnetic sieve shaker with 3-D motion and intermittent digital control, very quiet, does not transmit vibrations to the environment. The sieving machine automatically determines the particle size of a dry powderor a liquid dispersion by sieving through a series of sieves. The working time of the vibrator is programmable by means of a digital timer that stops at the end of the set time the instrument. The instruments does not include: Sieves, pan and cover, to be ordered separately.
TECHNICAL SPECIFICATIONS
• Steel structure epoxy powder coated
• Movement 3-D electromagnetic
• Control of vibration amplitude from 0,5 ÷ 2,5 mm
• Locking the sieves with two knobs
• Timer: 1÷99 min
• Suitable for wet tests with pan and cover cod. GT0454
• Max Capacity: 8 sieves Ø 200 mm – 8 “+ pan and cover
• Quantity of dry sample: from 50 ÷ 250 g
• Power supply: 240 V – 50 Hz single phase (other voltages on request)
| Code | Model | Timer | Internal dimensions | External dimensions | Power | Weight |
|---|---|---|---|---|---|---|
| GT1551 | SHAKER 3D | 1÷99 min | 400x300x800 mm | 445x335x800mm | 400 W | 35 kg |
| Code | Description | Image |
|---|---|---|
| GT0452 | Set of 7 standard sieves Ø 200 mm | Open image |
| GT0453 | Pan and cover for dry test | Open image |
| GT0454 | Pan and cover for wet test | Open image |
