Abrasimeter Iso

Standards

ASTM C 1027-99 ISO 10545-7 MCC method P.E.I. method UNE 138001 CSTB Cahier 3778 Annexe 1

Laboratories

Tableware lab Ceramic Tiles Lab

Laboratory instrument to determine the resistance to abrasion on glazing tiles. The instruments are calirated according to the UNI EN ISO 10545-7. Other calibration on demand. The test specimen is locked by means by a rubber surface according to a standard, insert into a special support containing an abrasive load composed by stainless steel balls, distilled water, and corundum grain size F80 on a rotating and swinging plate standard defined.

TECHNICAL SPECIFICATIONS
• Steel structure powder epoxy painted
• Plexiglass safety protection
• Speed rotating defined and calibrated at 300 r.p.m
• Supply: 230 V – 50/60 Hz single phase (other voltage on request)
• Electronic control r.p.m

EQUIPMENT
• Float Glass calibration plate 100x100x6 mm
• ISO Set abrasive charges supplied with steels balls and corundum

Code	Model	External dimensions	Power	Weight
GT1635	ABRASIMETER ISO 3	490x800x445 mm	0.4 kW	58 Kg

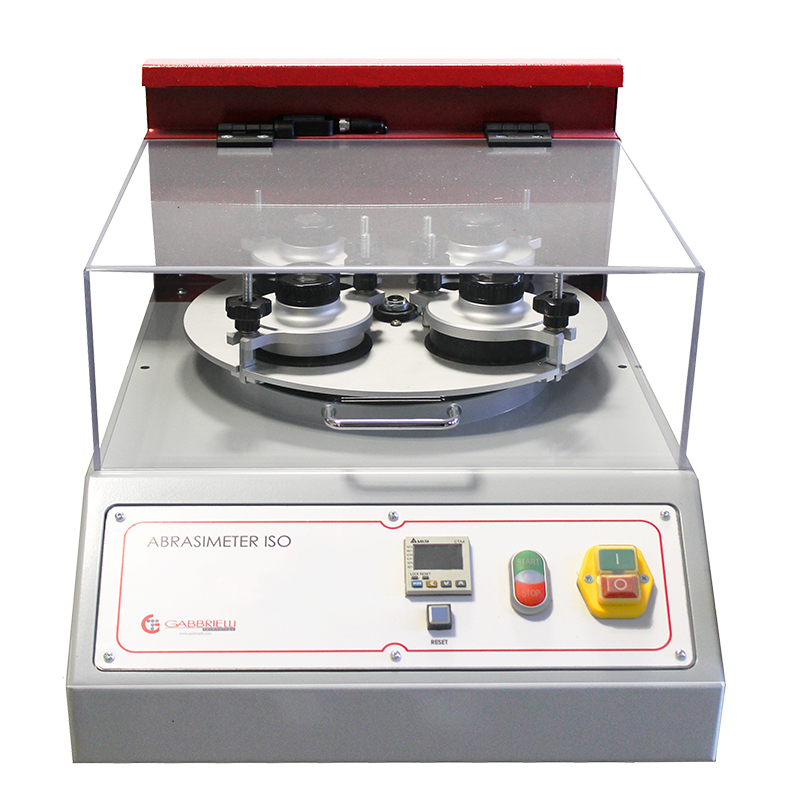

GT0100	ABRASIMETER ISO 4	490x800x445 mm	0.4 kW	60 Kg
GT0989	ABRASIMETER ISO 8	660x800x1080 mm	0.4 kW	135 Kg

Code	Description	Image
GT0101	Abrasive ISO load complete by steels balls and corundum	Open image
GT0102	Calibration plate in Float Glass 100x100x6 mm	Open image
GT0103	Instrument to identify the right side of Float Glass	Open image
GT0104	Lot 5 kg corundum (aluminium fused oxide) white, grain F80	Open image
GT0105	Stainless steel balls AISI 420 Ø 1 mm - lot by 100 g	Open image
GT0106	Stainless steel balls AISI 420 Ø 2 (1,97) mm - lot by 500 g	Open image
GT0107	Stainless steel balls AISI 420 Ø 3 (3,18) mm - lot by 500 g	Open image
GT0108	Stainless steel balls AISI 420 Ø 5 (4,76) mm - lot by 1 kg	Open image
GT0988	Rubber gasket for balls holder	Open image
GT1119	MCC abrasive load	Open image
GT1345	Kit UNE 138001 N°1 Station	Open image
GT2559	PEI abrasive load	Open image
