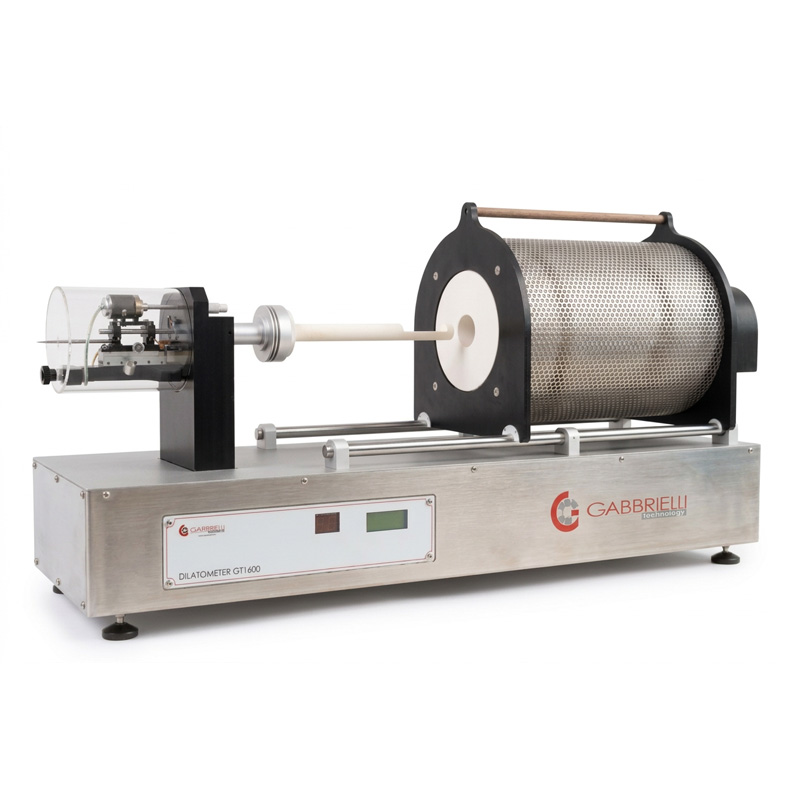

DILATOMETER GT-1600
Complete and reliable measuring instrument for laboratory tests, research and control on ceramic, glass, metal, plastics, polymers, composite, etc. The measuring system consisting of a sample holder with push rod that transmit the thermal expansion of the specimen to an LVDT transducer. By means a PC with software “DILATA” for Windows® and colour printer, allow the customer to full operate on the Dilatometer 1600 L.
TECHNICAL SPECIFICATIONS
Max temperature: RT…..1600°C
Furnace: Kanthal wire
Thermocouple: Type S
Sample Holder and probe: High Alumina
Sample size: 50 mm lenght | Ø 6….20 mm
LVDT linear range: +/-2,54 mm
LVDT resolution: 0,000001
PLC resolution: 0,0001%
Reproducibility :0,006 PLC
Contact load: 30 gr
Heating rates: Up to 30° C
Calibration sample: L= 50 mm polycrystalline high alumina
Measuring head cover :Included
Data acquisition: Data stored at 1°C increment
Data analysis: “Dilata©”software
EQUIPMENT
Dilatometer notebook with O.S Windows, software, DILATA and colour printer
| Code | Model | External dimensions | Power | Probe support | Temperature | Weight |
|---|---|---|---|---|---|---|
| GT2994 | DILA GT-1600 | 1250x620x36 mm | 2,00 Kw | Alumina | 1600 °C | 79,00 Kg |
