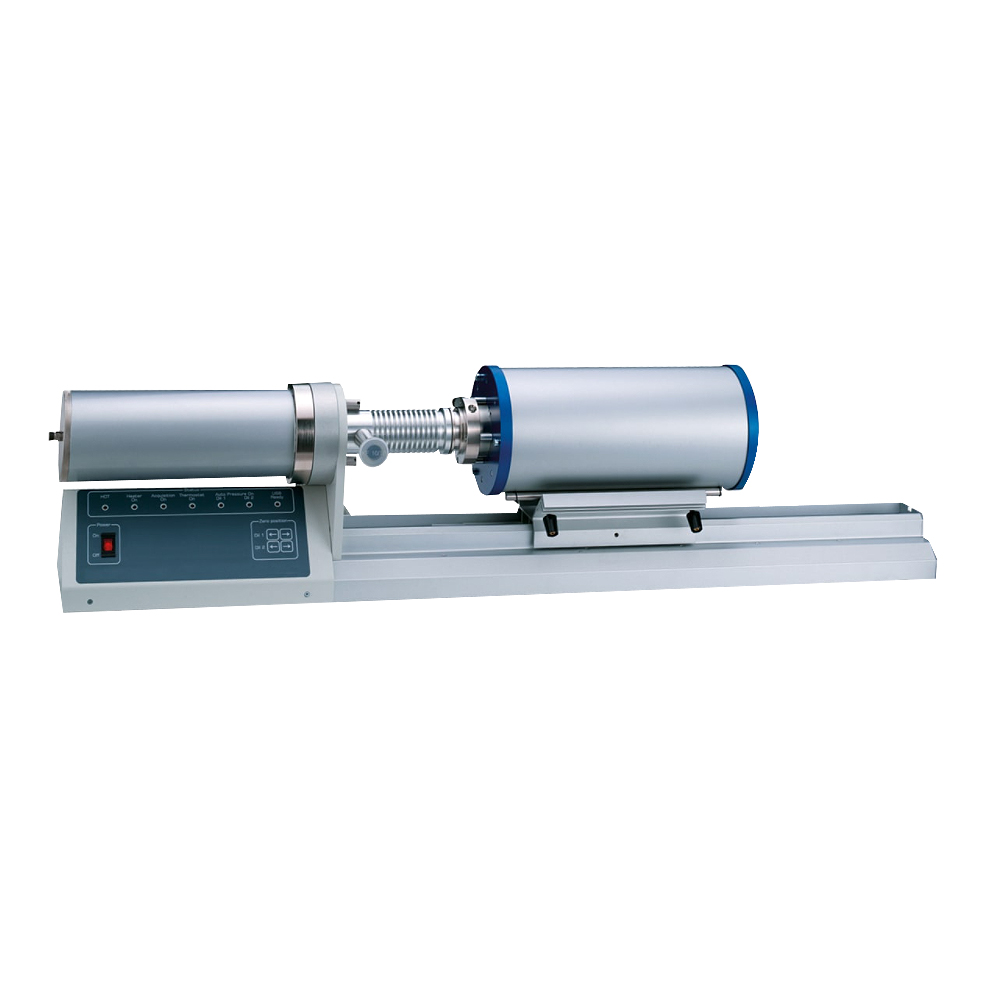

DILATOMETER PT L76 D 1000 C

Dilatometer for measuring a single sample from room temperature up to 1050 ° C in air complete with LINSEIS 32 BIT software, notebook and printer, quartz measuring system and calibration sample in AL2O3 with table.

TECHNICAL SPECIFICATIONS:
• Dilatometer complete with software and hardware, including calibration standards and accessories.
• Data acquisition software for dilatometer control with various parameter settings including temperature programming, gas control, etc.
• Temperature range: RT up to 1050 ° C.
• Sample length: up to max. 50 mm.
• Sample diameter: 7 – 10 mm.
• Measuring range: 50 μm up to 5000 μm.
• Maximum resolution: 0.125 nm / digit.

HARDWARE:
• Basic dilatometer with amplifier.
• Automatic zeroing.
• Automatic programmer.
• Electric thermostating of the measuring head.
• Measurement system in quartz diameter 12 mm.

SOFTWARE:
• Software package compatible with Windows VISTA, 7, 8, 10 etc.
• Necessary measurement parameters are included in the individual comments menu structure.
• Fine heating and cooling rate of the heating curve and duration of the holding temperature.
• Repetition of programming cycles up to 99 times.
• 16 programmable segments.
• Function menus are easy to manage.
• Evaluation software with many functions to obtain comprehensive results of multiple data.
• ASCII export.
• Delta L calculation, physical Alpha, technical Alpha (CTE), TG.
• Mathematical calculation of curves.
• Statistical evaluation of curves with mean and confidence interval.
• Print the results as a curve or table.
• Softening point software (protects the melting sample measurement system).
• Evaluation can be performed simultaneously with an ongoing measurement.
• Measurement data corrected via the correction curve.

Code Model External dimensions Power Voltage Weight
GT2387 DILA LS PT L76 D 1000 C 1200x400 mm 2 Kw 230 V 30 Kg
Code Description Image
GT2384 Calibration sample Ai2O3 with table
GT2386 Software package for DTA measurement on Dilatometer
