Gradient Kiln Gkm-6

Standards

Laboratories

Tableware lab Ceramic Tiles Lab Raw Materials Lab

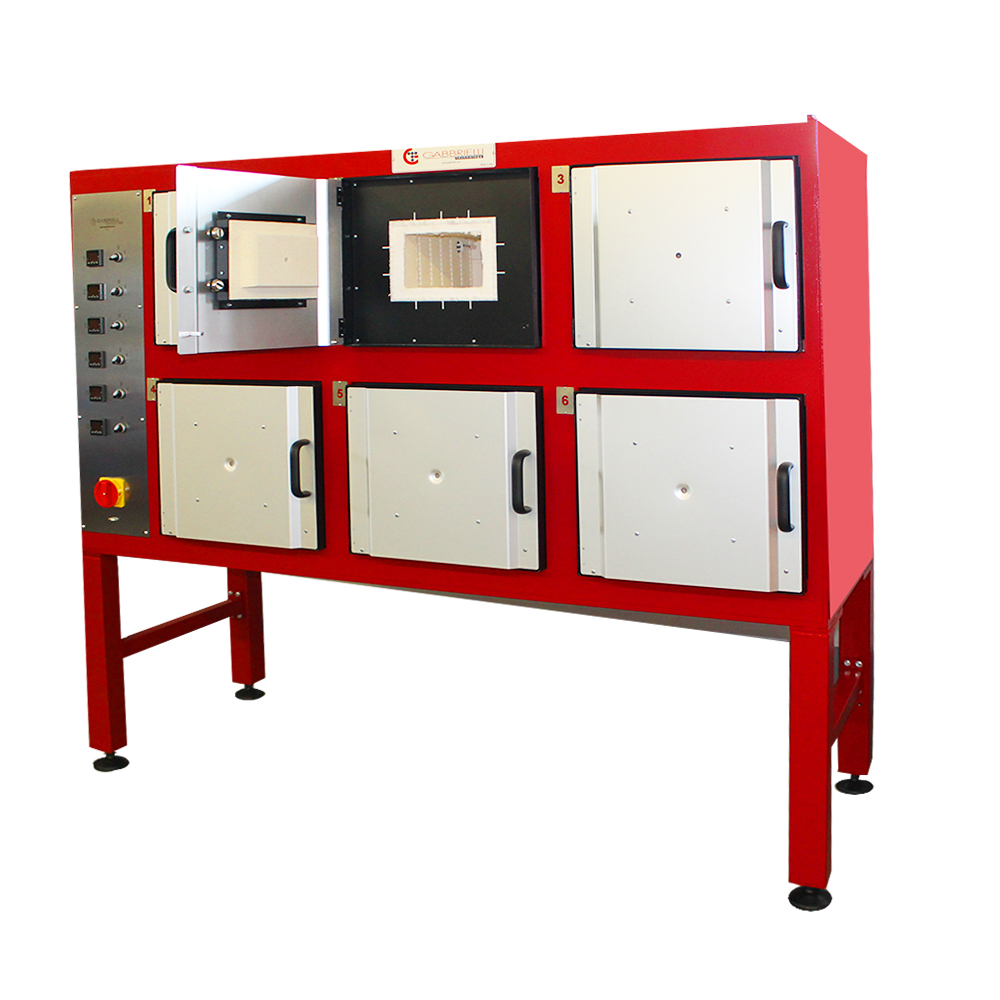

Gradient kiln equipped with 6 programmable muffles up to 1280°C. Thanks to the dedicated software the unit allows for the programming of the firing of the 6 chambers as master/slave or stand alone. Each chambers are equipped with single temperature controller which can be operated:
1. In remote connection with PC
2. In local mode enabling the performing and the control of a simple thermal working cycle

TECHNICAL SPECIFICATIONS
• This kiln represents the ultimate compromise between the fast time firing and the operational lasting of the heating body and thermal insulation
• The combination of lighter weight tiles and pre-formed ceramic fibres enables the kiln to quickly reach the working temperature
Quick and easy replacement of the chamber
• Temperature controller to each chamber
• Rear exhaust hood
• Switching off of the heating on opening the door
• Dimensions of chamber: 210x300x150 mm
• Working cycle controlled by dedicated software with relevant recording of the tests and printing of the cycle performed
• Max working temperature: 1280 °C
• Power installed to each chamber: 3,3 kW
• Supply: 400 V- 50/60 Hz three phases + neutral (other voltage on demand)

EQUIPMENT
Dedicated working kiln PC with software.
