Isovacuum Pro
Categories
Water AbsorptionIn addition to those described above, the instrument also performs tests for the latest ISO 10545-3 (2018) standard for material cut to 20×20 cm format. The cycles are already programmed and the operator can easily select or modify existing ones as well as program new ones. The installation of the colour touchscreen presents an easy-to-interpret operator interface that allows the user to have a series of information. The instrument is supplied and tested according to the UNI ISO 10545-3-2018 standard and must be connected to an external tank for loading/unloading demineralized water. Upon request, modifications can be made for direct connection to the water mains.
TECHNICAL SPECIFICATIONS
• Touch screen with working cycle display
• Friendly and easy use of the instrument by means of the touch-screen that allows controlling the working cycle
parameters and display of the cycle trend
• Display of the working cycle trend
• Saving time of working cycle duration
• Absolute pressure sensor

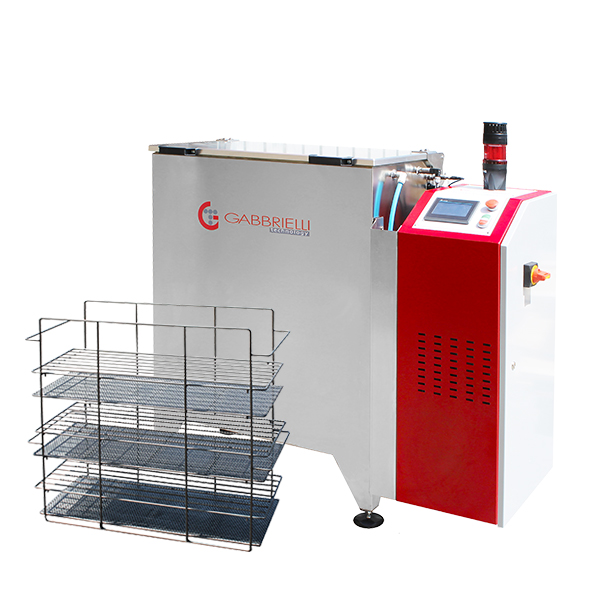

• Vertical tank with different levels steel basket
• Pump for water discharge
• Reaching 10 Kpa and keeping the pressure +/- 1Kpa
• Water filling level
• Control of the warning water level
• Nr.10 programmable working cycles
• Data logger of the cycle
• Exporting data by USB (pen drive)
• Ethernet output predisposition
• Possibility of calibrating the instrument by means of calibrated gauge
• Alarms setting
• Predicted maintenance:
• Pump oil level control
• Power supply: 230V-50 Hz single phase (other voltages on request)
EQUIPMENT
• Bottle of special oil for pump 500 cc
| Code | Model | External dimensions | Power | Weight |
|---|---|---|---|---|

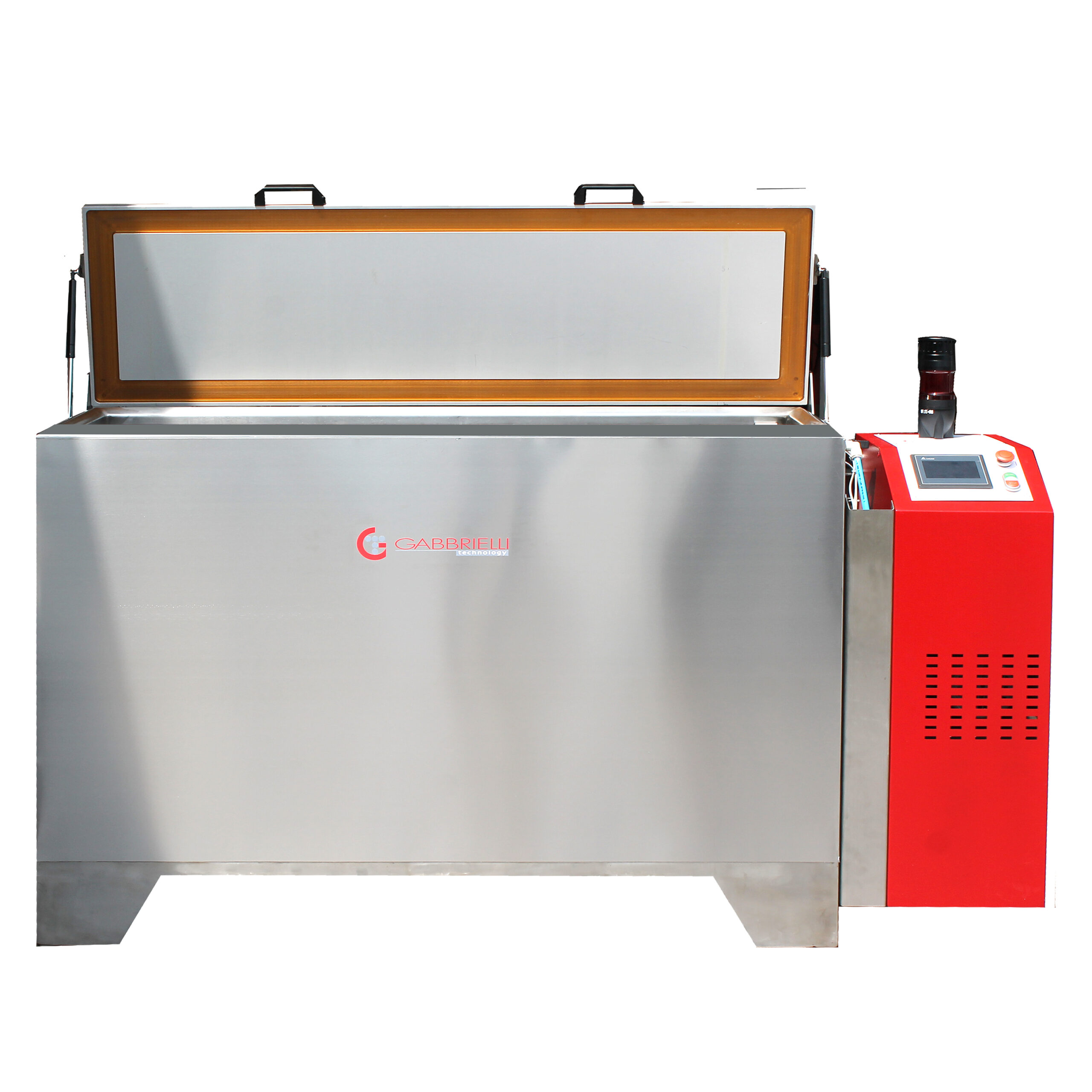

| GT1917 | ISOVACUUM 650x1250 PRO | 1900x580x1140mm | 0,5 kW | 280Kg |
| GT1918 | ISOVACUUM 950 PRO | 1580x580x1300 mm | 0,5 kW | 240 Kg |
| GT1916 | ISOVACUUM 800 PRO | 1330x580x1150 mm | 0,5 kW | 150 kg |

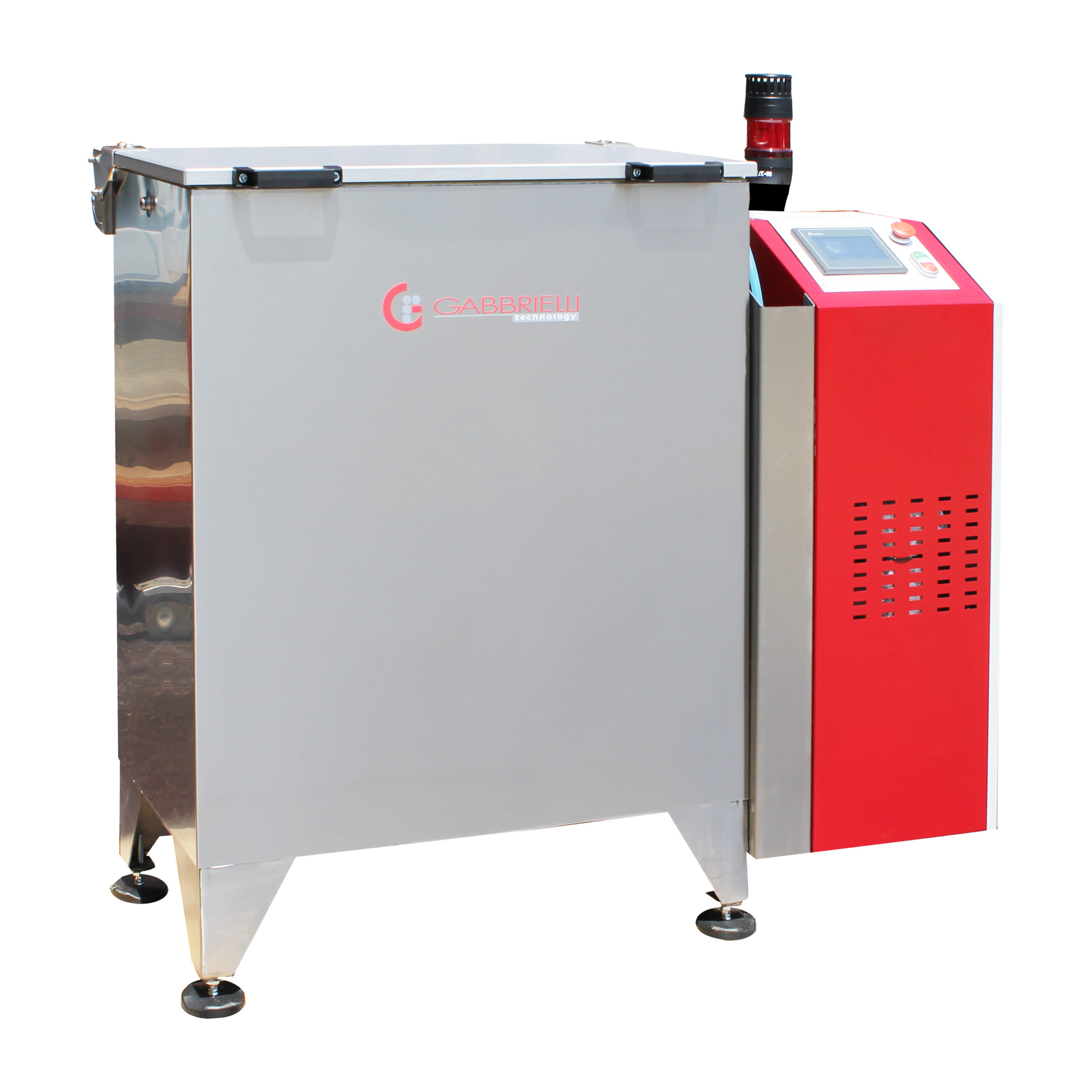

| GT1915 | ISOVACUUM 650 PRO | 1280x580x1140 mm | 0,5 kW | 130 Kg |
| Code | Description | Image |
|---|---|---|

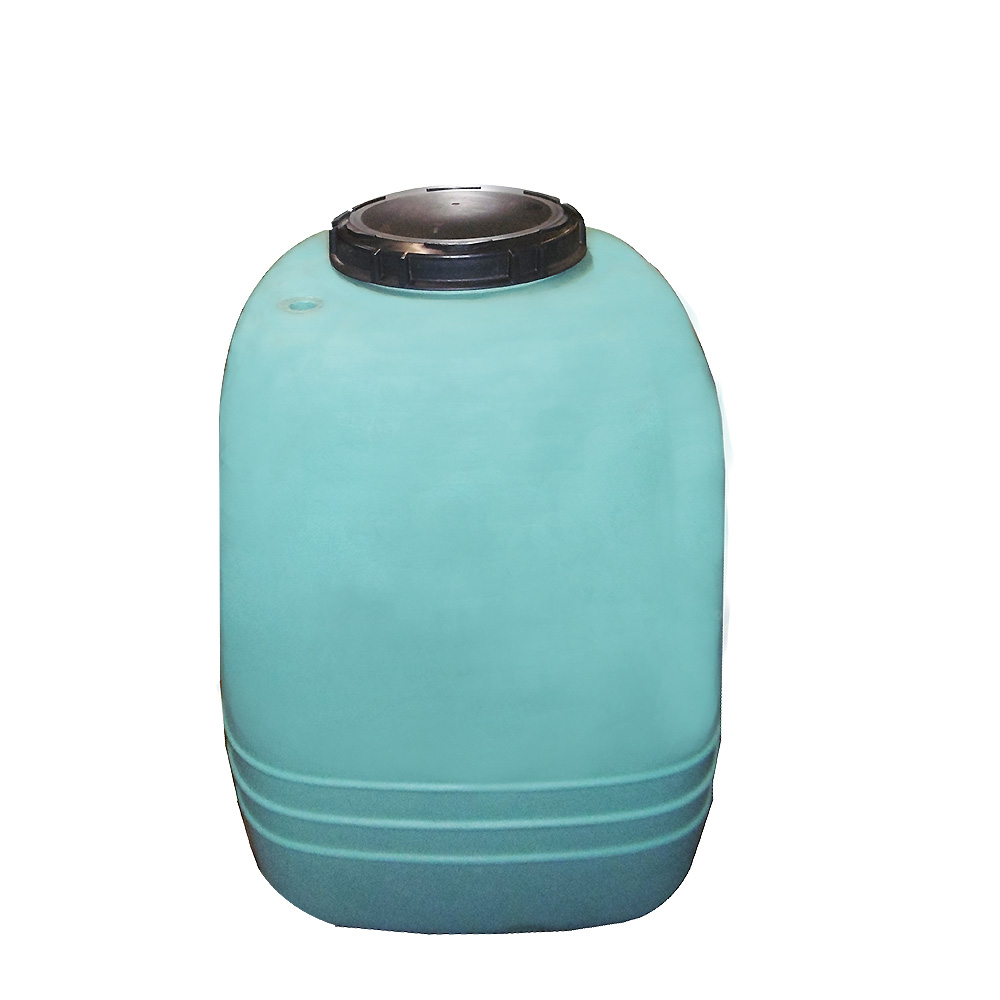

| GT0971 | Plastic tank for demineralized water 750 Lt. (Model 800, 950, and 1250) | Open image |
| GT1471 | Plastic tank for demineralized water 300 Lt (Model 650) | Open image |

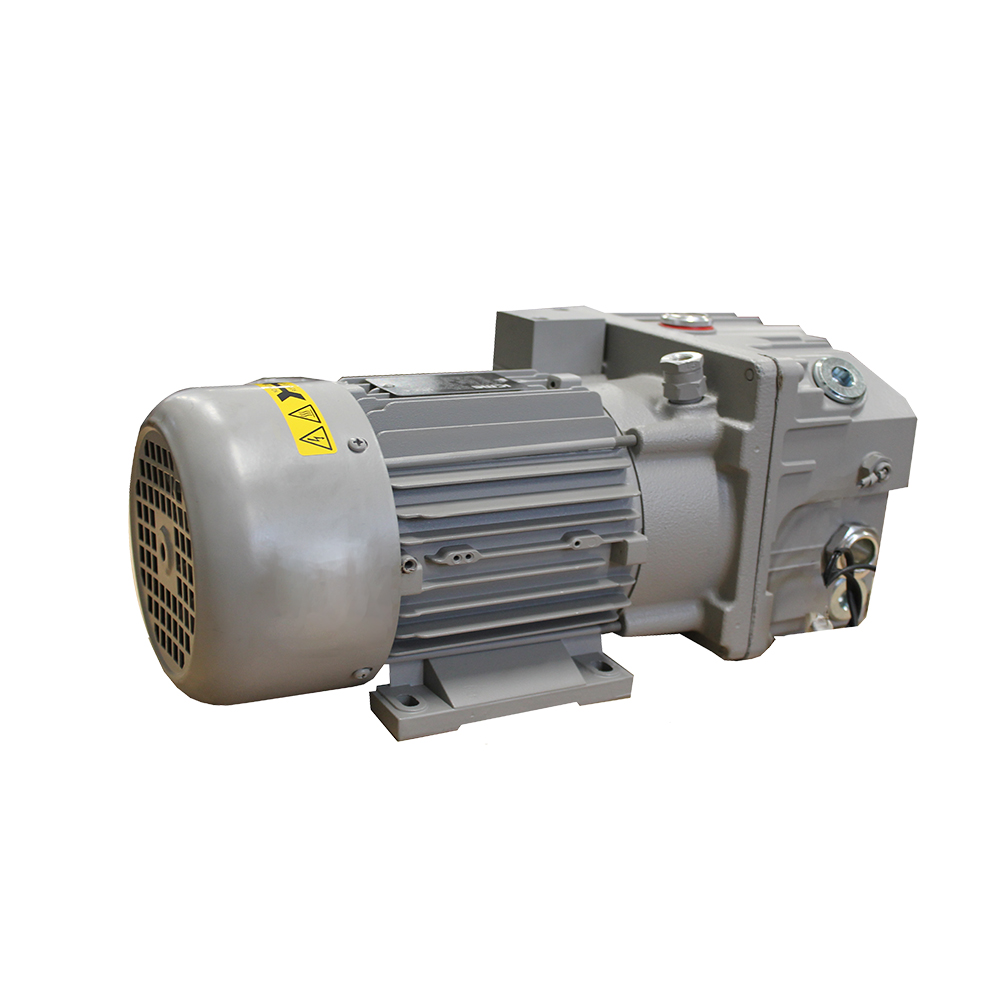

| GT1683 | Vacuum pump | Open image |
| GT1684 | Bottle 500 cc special oil for pump | Open image |
| GT2088 | ACCREDIA reference Vacuometer | Open image |
