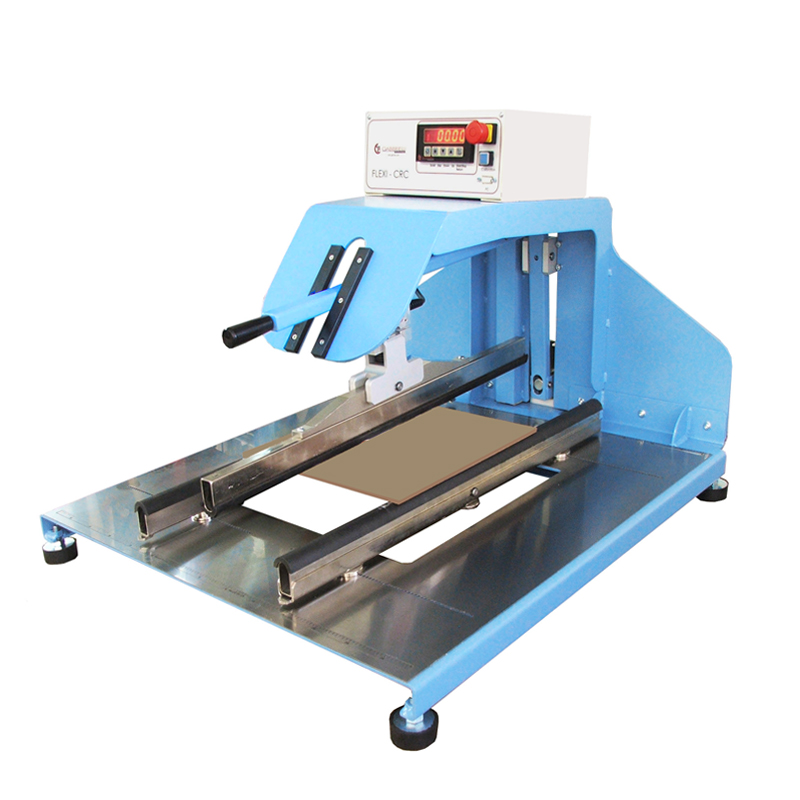

Crometro CRC Automatic
Automatic instrument with drive electromechanical attuator operation for the determination of the flexural tensile strenght of the unfired (green) ceramic tiles, size from 100×100 mm up to 650×650 mm. Its natural application is for the quality and production controls immediately at the pressing or at the dryer exit.
TECHNICAL SPECIFICATIONS
• Electronic display 5 digit
• Recording of the breaking value
• Automatic calculation of the breaking modulus
• Central opening for the falling of the broken pieces
• Size from 100×100 mm up to 650 x 650 mm easily adjustable
• Max. load: 60 kg
• Accuracy: 10 g
• Supply: 230 V 50/60 Hz single phase
• Maximum load applied displayed kg or daN
• Approach speed programmable
• Programmable load applied
• RS 232 serial port
EQUIPMENT
• Load Cell of 60 Kg
| Code | Model | Tile format | Maximum force applied | Power | Weight |
|---|---|---|---|---|---|
| GT1424 | CROMETRO CRC AUTOMATIC | 100x100 mm ÷650x650 mm | 60 Kg | 100 W | 60 Kg |
| Code | Description | Image |
|---|---|---|
| GT1418 | Load cell of 60 kg | Open image |
| GT1527 | Actuator | Open image |
| GT1467 | Minidin Electronic Microprocessor | Open image |
