Flush-tec module for sanitary

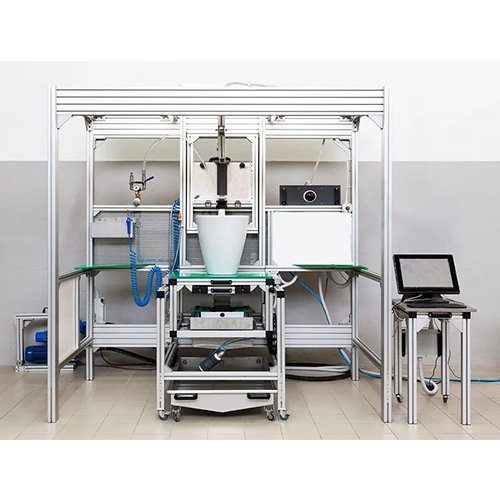

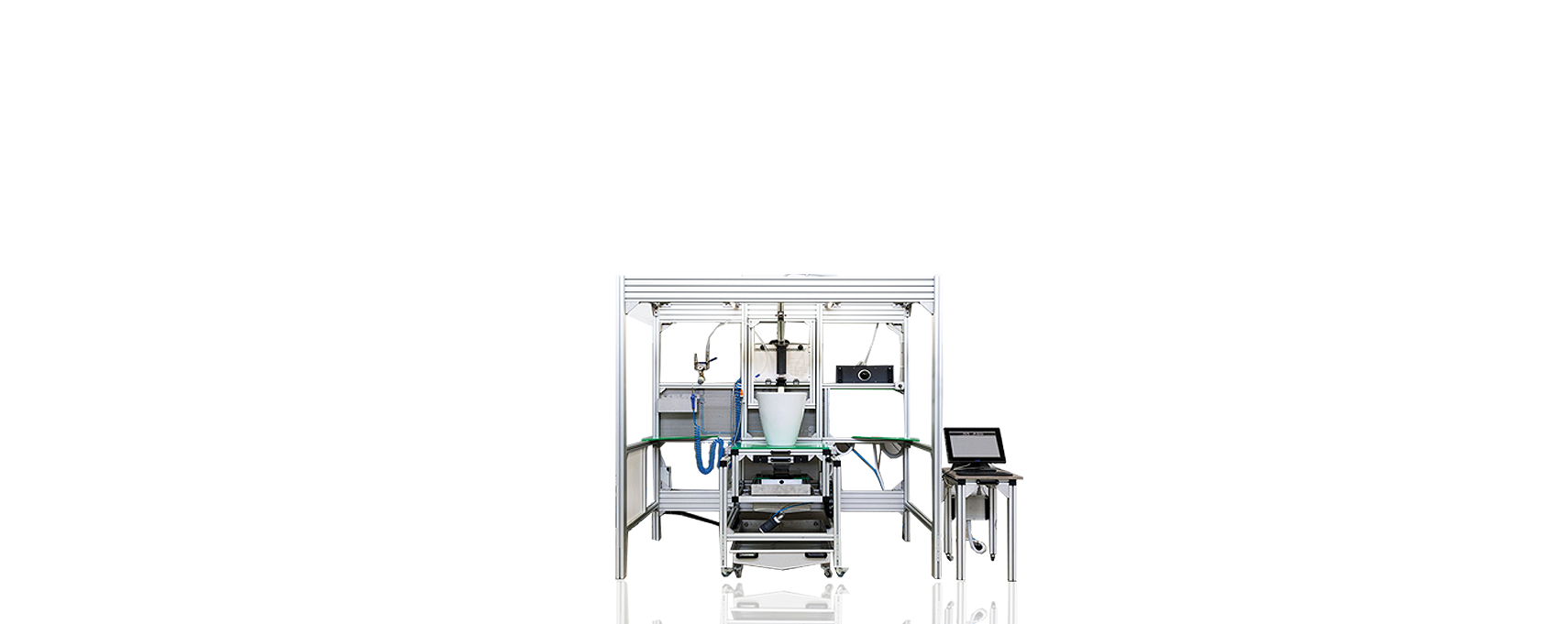

The FLUSH-TEC module is designed to perform drainage tests, basin washing and outdoor splashing according to EN 997 and AS 1172.1. It consists of a support surface in aluminum profiles with adjustable fixing screws to level the toilet bowl, it is positioned on a surface with sliding wheels, through the adjustable aluminum brackets that allow easy insertion of the supply and drain pipes. Thanks to the conformation of the locking system, it is possible to mount suspended toilets, floor-mounted toilets, monobloc toilets. To load the water into the monobloc toilet there is a manual ball valve that conveys the measured water into the tank. The additional pneumatic actuator mounted on a mechanical arm is used for unloading the monobloc vessel. In the lower part of the support bench there is a water collection tank that fills automatically by means of a float valve.

TECHNICAL SPECIFICATION
• Water pressure adjustment in use: from 0.5 to 3.0 bar (EN 997 = 1.5 bar). Max. Temperature 70 ° C
• Electric pulse meter: 170 pulses X liter (resolution EN 997 = 100ml)
• Water used inside the collection tank, recycling with an electric pump controlled by the system
• Counting station for nr. 50 marbles with counting performed in about 5-10 seconds
• Execution time for sawdust test: about 120 seconds
• Water measurement scale: 1 0 – 50 kg load cell connected to the PLC 16 bit resolution A / D converter. Operating temperature: -20 ° C to 60 ° C. Resolution 3g (= 3ml)
• PLC 16BIT: machine cycle of 50 msc and 6 + 6 digital in / out 4 analog input
• Power supply: 220 V – 50/60 Hz
• Total installed electrical power: 950 W
• Dimensions: Width 2000mm, height 2150mm, depth 1420mm
• Machine weight: 300 kg (without water in the boxes)

Strandards:
EN 997 5.2.2 Class 1 – Washing of the basin
EN 997 5.2.3 Class 1 – Unloading of toilet paper
EN 997 5.2.4 Class 1 – Unloading of 50 plastic balls
EN 997 5.2.5 Sketches on the outside of the vessel
EN 997 5.2.6 Class 1 – Volume of rinsing after emptying
EN 997 6.9 Class 2 – Solid discharge and rinsing capacity after discharge for maximum discharge
EN 997 6.10 Class 2 – Unloading of toilet paper for reduced unloading capacity
EN 997 6.12 Class 2 – basin washing
AS 1172.1 3.1 Unloading of toilet paper at maximum discharge
AS 1172.1 3.2 Low-level toilet paper discharge
AS 1172.1 3.3 Discharge of solids
AS 1172.1 3.5 Outside sketches
AS 1172.1 3.6 Basin washing (sawdust)

Code Model External dimensions Power Voltage Weight
GT2457 FLUSH-TECH-SAN 2000x2150x1420 mm 950 W 220 V - 50/60 Hz 300 Kg
Code Description Image
GT2458 nr. 3 load cells 15 Kg
GT2459 Venturi Pump
GT2460 Ball control LED panel
GT2461 Touch panel with pre-installation
GT2462 VIP Valve
GT2463 Water recycling pump
GT2464 Tank drain valve

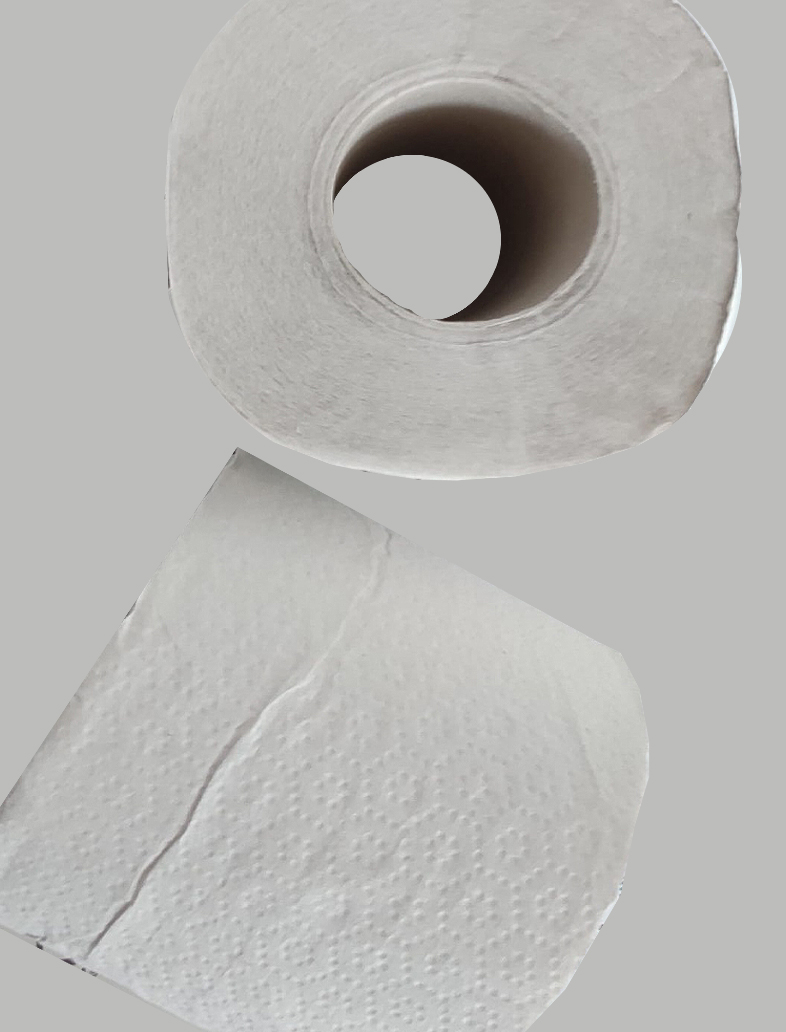

GT2465 Toilet roll paper according to EN 997 Open image
GT2466 Flow control according to EN 997

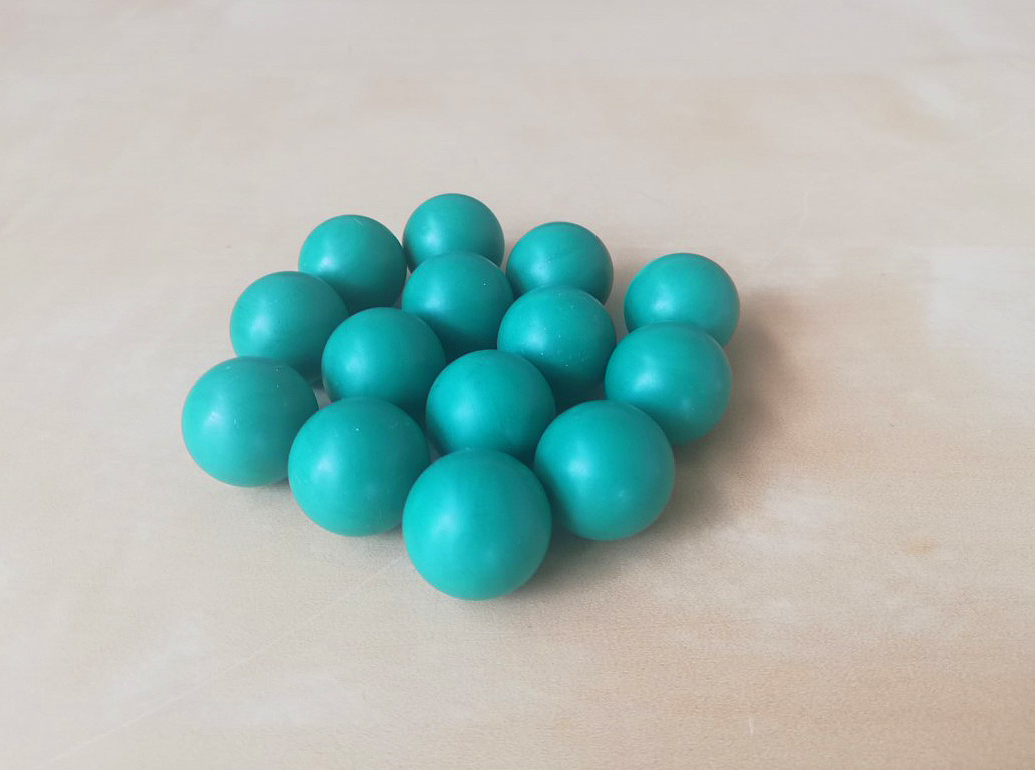

GT2467 Kit 50 balls Open image

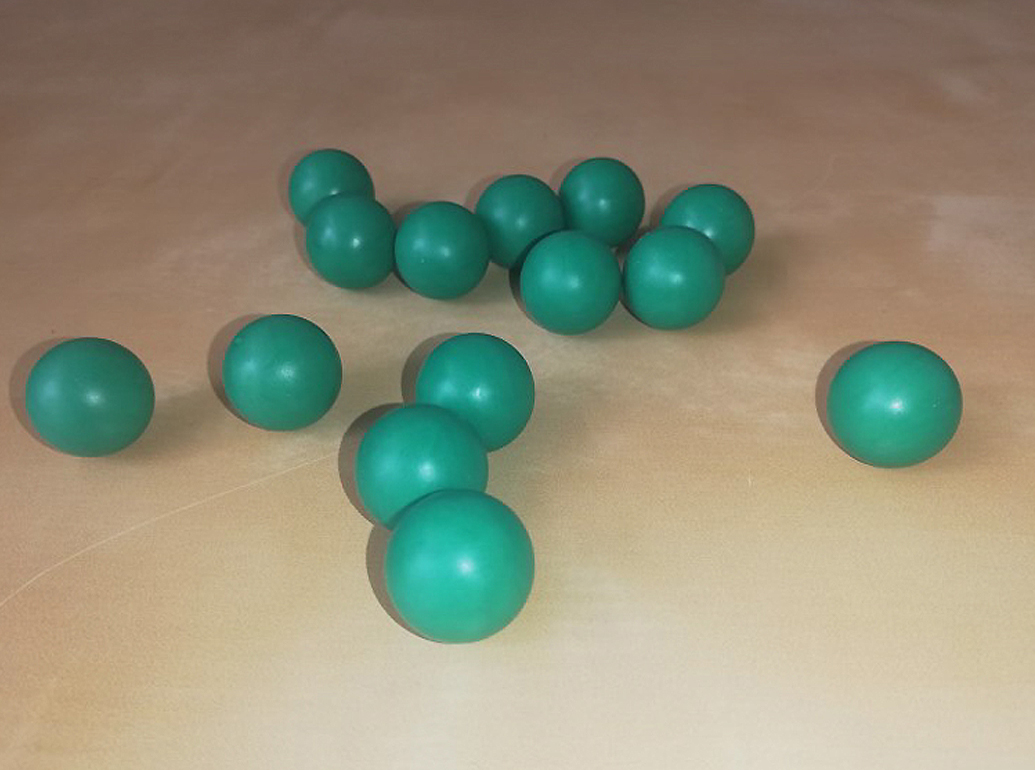

GT2468 Kit of 100 balls for discharge line according to ASME A 112 and SASO 1473 standards Open image

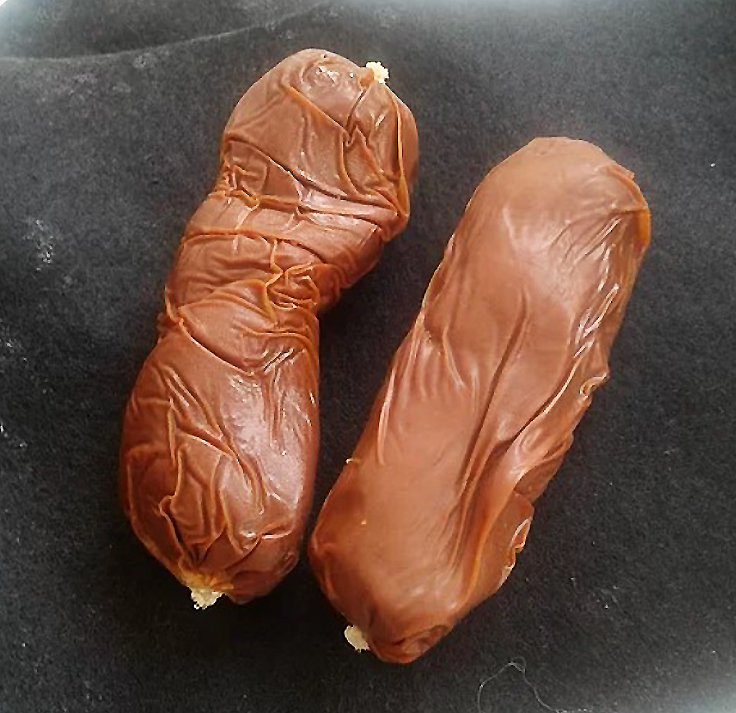

GT2469 Soybean Samples for Flow Test Open image
