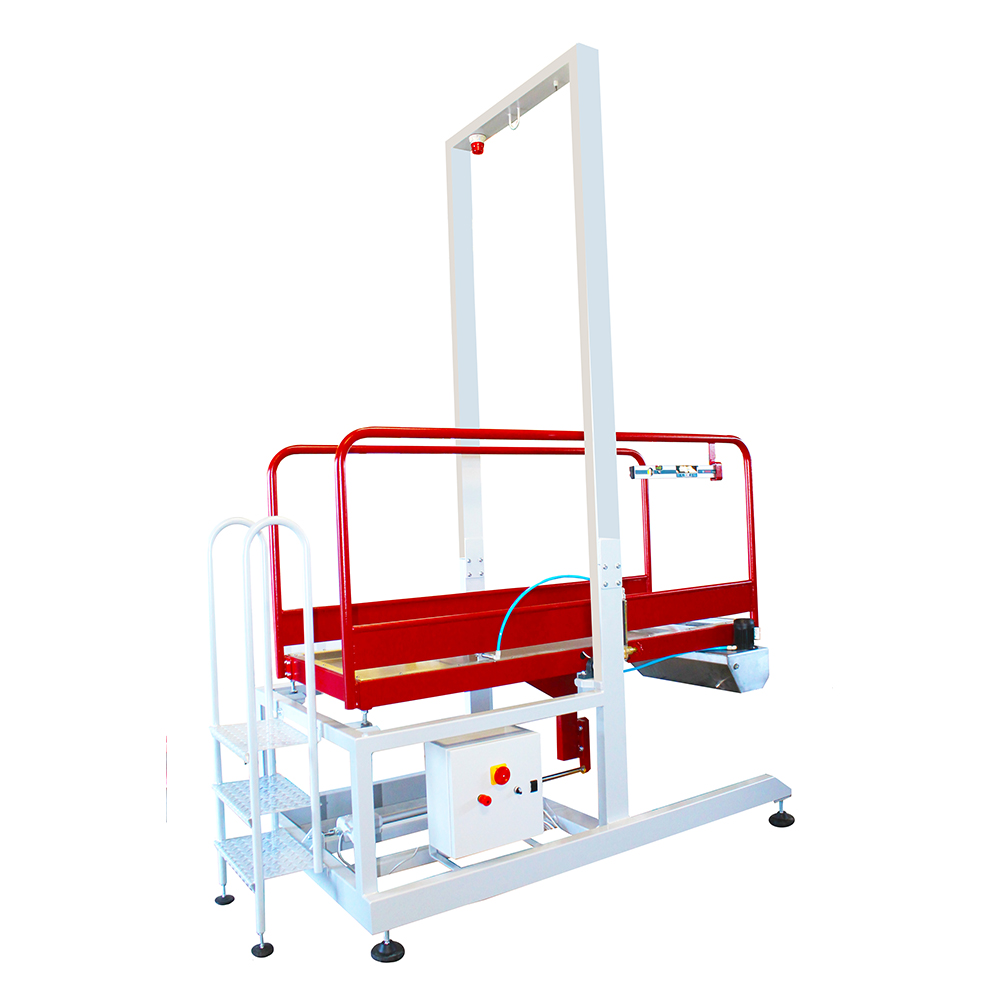

Slipperiness Platform DIN EN 16165
Categories
SlipperinessInstrument for determining the dynamic critical angle according to DIN EN 16165: 2021 Annex A / Annex B consisting of a painted steel structure, stainless steel tilting surface to support a test panel with maximum dimensions max 60×120 cm. The operator with the seat belt on walks back and forth on the platform which gradually tilts with a speed of 1 ° per second. The movement is stopped by the operator when a sliding angle is reached. The test is carried out several times near the angle found with a movement in steps of 0.5 ° to find the exact value of the critical angle.
TECHNICAL SPECIFICATIONS
• Tilt movement by electromechanical actuator
• Platform with width 600 mm and length 2000 mm
• Hanging push-button panel with 3 up-down-start water validation angle
• Inclinometer with accuracy ± 0.2 °
• Continuous gradient motion
• Angle executable from the platform 0 ÷ 45 °
• Platform rigidity during walking not greater than ± 0.5 ° degrees
• Metronome with 144 pulses / 1 ‘
• Direction adjustable spray nozzles
• Adjustable flowmeter 6 ± 1 liter / min
• Safety tools for the operator: barriers on both sides, rope, safety belt
• Collection tank for aqueous solution
• Control box
• Touch screen interface
• RJ45 connection to the company network
• USB key connection
• VNC connection (interactive touch screen repetition on a PC connected to
the company network)
• Connection for remote assistance
• Download test data on a PC connected to the company network
• Data recorded on usb-key
EQUIPMENT
• Hanging push-button panel
• FP CEN 35 harness rope
• K4 CEEN 385 seat belt
• Service ladder
GT2502 Bare feet test kit DIN EN 16165 Annex A excluded and to be ordered separately
| Code | Model | External dimensions | Power | Weight |
|---|---|---|---|---|
| GT2504 | SLIPPERINESS PLATFORM DIN EN 16165 | 2520x1310x3500 mm | 0,35 Kw | 400 kg |
| Code | Description | Image |
|---|---|---|
| GT2422 | Calibration panels St-A / St-B / St-C according to EN 16165 Annex A | Open image |
| GT2342 | Safety Harness | Open image |
| GT2502 | Bare foot test kit for DIN EN 16165 Annex A | Open image |
| GT2503 | Pair of shoes n ° 42 according to EN 16165 Annex B | Open image |
| GT2501 | Calibration panels St-I / St-II / St-III A according to EN 16165 Annex B | Open image |
| GT2340 | Water recirculation pump | Open image |
| GT2341 | Actuator | Open image |
